Underground Cable Locator with Signal Transmitter and Receiver
Underground Cable Locator with Signal Transmitter and Receiver
  • Underground Cable Locator with Signal Transmitter and Receiver
  • Underground Cable Locator with Signal Transmitter and Receiver
  • Underground Cable Locator with Signal Transmitter and Receiver
  • Underground Cable Locator with Signal Transmitter and Receiver
  • Underground Cable Locator with Signal Transmitter and Receiver

Underground Cable Locator with Signal Transmitter and Receiver

Product Details:
Place of Origin: China
Brand Name: XZH TEST
Certification: CE/ISO
Model Number: XHLJ504L
Detail Information
Place of Origin:
China
Brand Name:
XZH TEST
Certification:
CE/ISO
Model Number:
XHLJ504L
Highlight:

High Light

Highlight:

underground cable locator with transmitter

,

cable fault locator with receiver

,

signal transmitter for cable detection

Trading Information
Minimum Order Quantity:
XZH TEST
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
1000 units per year
Product Description
Underground Cable Locator with Signal Transmitter and Receiver 0
Product Overview

The Intelligent Multi Function Underground Pipeline Pathfinder Locator is a specialized cable route tracer designed for detecting underground cable layout positions and burial depths within a specified range. This system consists of a signal transmitter and receiver that work in unison to accurately pinpoint cable routes in probable burial areas.

System Components

The cable route tracer primarily consists of two main components:

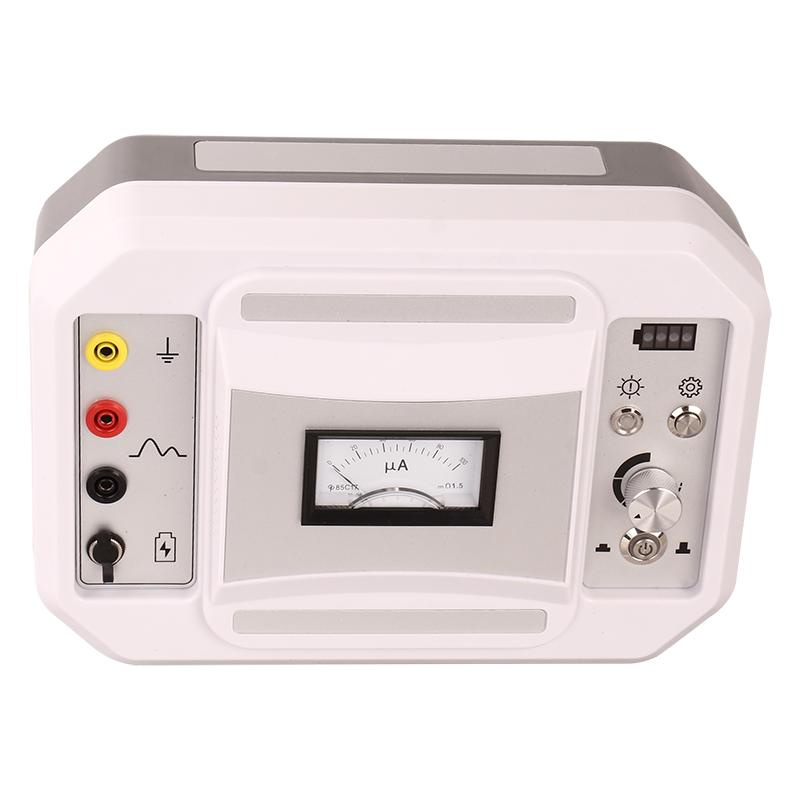

1. Cable Route Signal Transmitter

A high-power signal transmitter essential for detecting underground cable routes.

Key Features
  • High power output with vibration resistance
  • Strong anti-interference capability for stable, reliable operation
  • Comprehensive protection against over current, open circuit, and short circuit conditions
  • Precise and rapid tracing capability
Technical Specifications
Output Frequency:
Audio Frequency
Output Signal:
Intermittent, 0~50Vpp
Power Supply:
220V (1±10%) 50Hz (1±5%)
Output Power:
100W
Output Current:
0~2A
Receiving Mode:
Electro-magnetic induction
