Cable Fault Locator
>
Underground Cable Identifier with Audio Frequency Output
Underground Cable Identifier with Audio Frequency Output
  • Underground Cable Identifier with Audio Frequency Output
  • Underground Cable Identifier with Audio Frequency Output
  • Underground Cable Identifier with Audio Frequency Output
  • Underground Cable Identifier with Audio Frequency Output

Underground Cable Identifier with Audio Frequency Output

Product Details:
Place of Origin: China
Brand Name: XZH TEST
Certification: CE/ISO
Model Number: XHLJ504L
Detail Information
Place of Origin:
China
Brand Name:
XZH TEST
Certification:
CE/ISO
Model Number:
XHLJ504L
Highlight:

High Light

Highlight:

underground cable identifier with audio

,

cable identifier with frequency output

,

audio frequency cable locator

Trading Information
Minimum Order Quantity:
XZH TEST
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
1000 units per year
Product Description

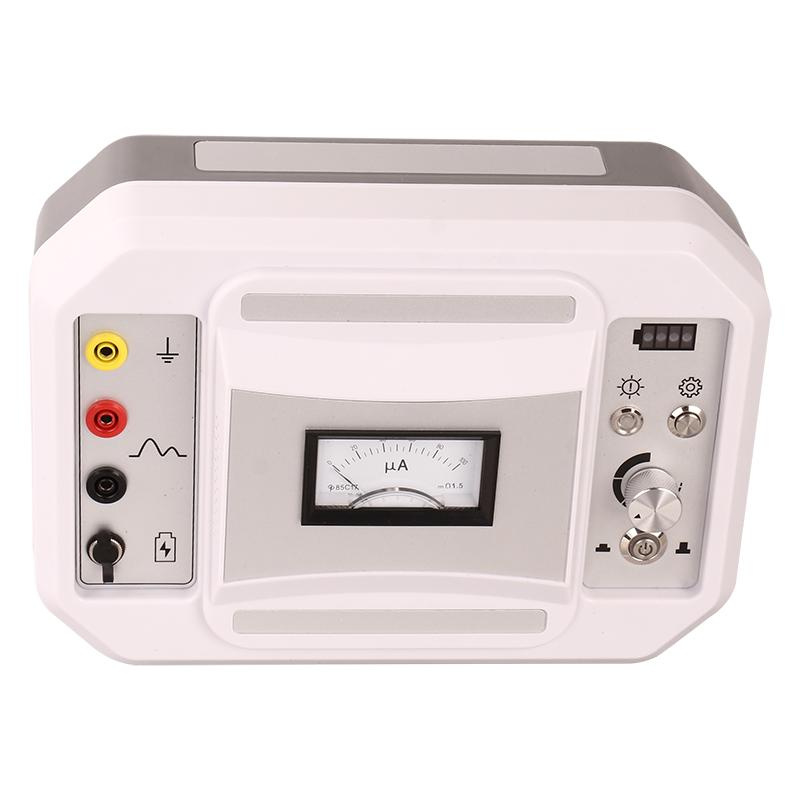

Underground Cable Identifier with Audio Frequency Output 0
Cable Route Tracer
Specialized equipment for detecting underground cable layout position and burial depth within a specified range. The system consists of a signal transmitter and receiver that work in unison to precisely locate cable routes in probable burial areas.
System Components
The cable route tracer primarily consists of:
  • Route signal transmitter
  • Receiver (cable fault pinpoint detector)
Signal Transmitter Features
Power Output: High power
Durability: Anti-vibration design
Performance: Strong anti-interference capability, stable and reliable
Protection: Over current, open circuit and short circuit protection
Technical Specifications
Output Frequency: Audio Frequency
Output Signal: Intermittent, 0~50Vpp
Power Supply: 220V (±10%), 50Hz (±5%)
Output Power: 100W
Output Current: 0~2A
Receiving Mode: Electro-magnetic induction
Key Advantages
  • High power output for reliable detection
  • Robust construction with vibration resistance
  • Advanced interference protection for stable operation
  • Comprehensive safety protection features
  • Precise and rapid cable tracing capability
