Underground Cable Locator with Signal Transmitter and Receiver
Underground Cable Locator with Signal Transmitter and Receiver
  • Underground Cable Locator with Signal Transmitter and Receiver
  • Underground Cable Locator with Signal Transmitter and Receiver
  • Underground Cable Locator with Signal Transmitter and Receiver

Underground Cable Locator with Signal Transmitter and Receiver

Product Details:
Place of Origin: China
Brand Name: XZH TEST
Certification: CE/ISO
Model Number: XHLJ504L
Detail Information
Place of Origin:
China
Brand Name:
XZH TEST
Certification:
CE/ISO
Model Number:
XHLJ504L
Highlight:

High Light

Highlight:

underground cable locator with transmitter

,

cable identifier with signal receiver

,

underground wire detector with warranty

Trading Information
Minimum Order Quantity:
XZH TEST
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
1000 units per year
Product Description
Underground Cable Locator with Signal Transmitter and Receiver 0
Product Overview

The Intelligent Multi Function Underground Pipeline Pathfinder Locator is specially designed for detecting underground cable layout positions and burial depths within a specified range. This system consists of a signal transmitter and receiver that work in unison to precisely pinpoint cable routes in probable burial areas.

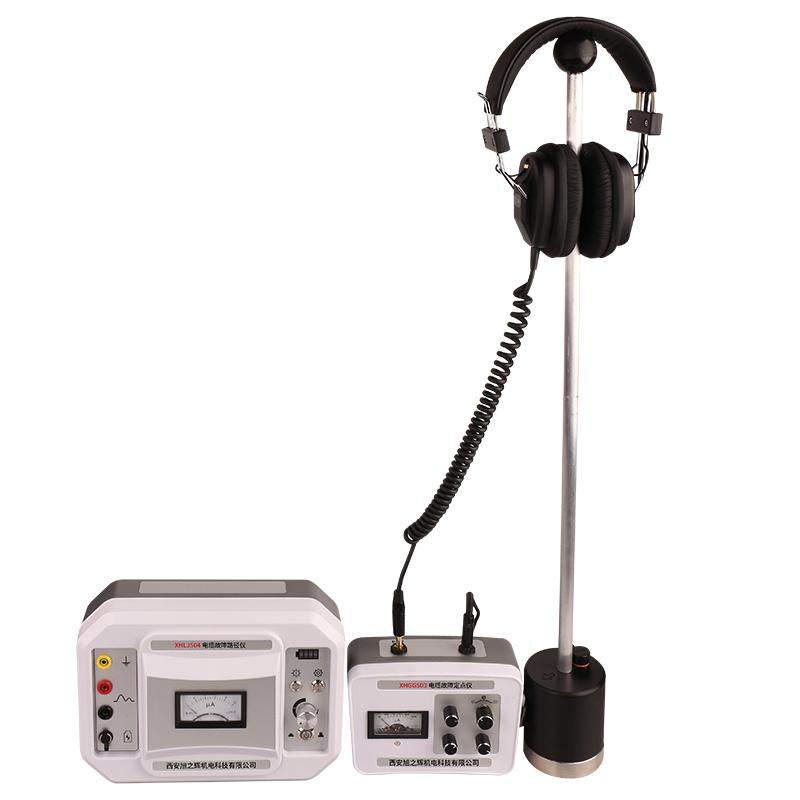

System Components

The cable route tracer primarily consists of:

  • Route signal transmitter
  • Receiver (cable fault pinpoint detector)
Signal Transmitter Features
  • High power output with anti-vibration design
  • Strong anti-interference capability
  • Stable and reliable performance
  • Comprehensive protection against over current, open circuit, and short circuit conditions
Technical Specifications
Output Frequency: Audio Frequency
Output Signal: Intermittent, 0~50Vpp
Power Supply: 220V (±10%), 50Hz (±5%)
Output Power: 100W
Output Current: 0~2A
Receiving Mode: Electro-magnetic induction
Key Advantages
  • More accurate and quicker tracing capabilities
  • Reliable protection mechanisms
  • Stable performance in various underground conditions
