Product Description
Cable Fault Locator for Streamlined Cable Identification
The cable spiker is specialized equipment designed for destructive identification of cables after initial identification and before sawing. In power cable construction, maintenance, and migration projects, this device ensures operator safety by confirming whether cables are live before cutting.
Key Functionality
The device provides absolute confirmation of cable status through mechanical puncture, creating a short circuit point. If the cable is electrified, it will explode when punctured; if not, no reaction occurs.
Product Specifications
Model: Cable Spiker
Recognition Method: Swing direction of the hands
Jaw Size: 125mm
Power: 1.5kVA (intermittent momentary)
Weight: 11.00kg
Dimensions: 430×360×225mm
Signal Frequency: 0.4Hz to 1Hz (adjustable)

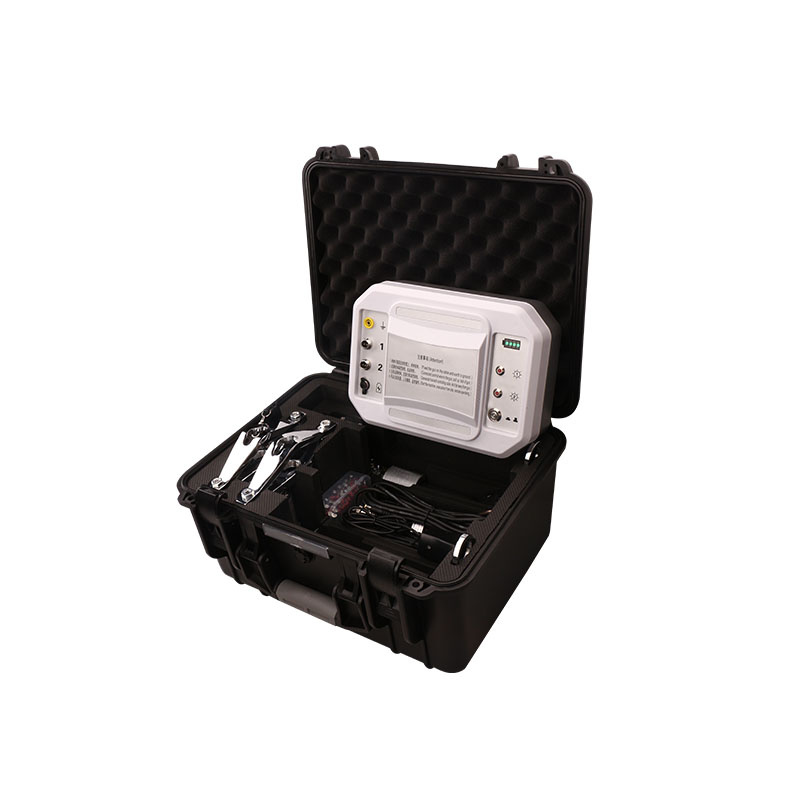

Cable Spiker for Live Cable Identification 30-150mm Clamp 0
Key Features
  • Effective operation even when gun angles aren't at 120° - at least one gun body will create a short circuit point
  • Dual control system: wired + wireless remote control with wall penetration capability
  • Versatile power options: AC/DC operation with built-in lithium battery and large-capacity energy storage
  • Compact and lightweight design ideal for field use
Technical Parameters
Component Specification
Shooting Device 2 gun bodies
Remote Control Distance >10 meters (wall penetration capable)
Control Line Length 5 meters
Clamp Diameter φ30-150mm
Power Supply AC 220V/50Hz charging, 10+ hours battery operation
Controller Dimensions 270×230×120mm, 2.5kg
Complete Set (Double Gun 506Y) 470×380×210mm, 15.5kg
Nail Specifications
Cable Diameter (mm) 30 40 50 60 70 80 90 100
Nail Specifications PS27C8 PS37C8 PS47C8 PS52C8
Bullet Power Specifications
Specification Black Blue Yellow Red Recommended Use
Power Level Smallest Small Middle Big 35kV and below: Use S1 yellow
35kV and above: Use S1 red (6.8×11mm)
Standard Configuration: 50 rounds of S1 red (power level 5) bullets, 50 rounds of PS57C8 nails
Operation Interface
Cable Spiker for Live Cable Identification 30-150mm Clamp 1
  1. Grounding: Instrument grounding point for safety protection
  2. Output 1: Connection to shooter body
  3. Output 2: Connection to shooter body
  4. Charging: DC12V charging port
  5. Switch: Power on/off control
  6. Indicator Light 1: Illuminates when Output 1 is active
  7. Indicator Light 2: Illuminates when Output 2 is active
  8. Power Indicator: Displays real-time battery level
Components Overview
Cable Spiker for Live Cable Identification 30-150mm Clamp 2
  1. Controller: Manages cable puncture action process
  2. Remote Control: Buttons A/B correspond to Output 1/2
  3. Bullet: Loaded into chamber for stabbing
  4. Shooting Nails: Inserted into nail tube
  5. Shooter: Main puncture mechanism
  6. Output Line: Controller-to-shooter connection
  7. Ground Wire: Shooter-to-ground drill connection
  8. Ground Drill: Creates grounding point when none exists
  9. Accessories: Screwdriver, socket, test tube brush for maintenance
  10. Power Cord: Control box charging cable
Cable Spiker for Live Cable Identification 30-150mm Clamp 3
