Lightweight Series Resonance Experimental Apparatus | Low Power Consumption High Precision
Lightweight Series Resonance Experimental Apparatus | Low Power Consumption High Precision
  • Lightweight Series Resonance Experimental Apparatus | Low Power Consumption High Precision

Lightweight Series Resonance Experimental Apparatus | Low Power Consumption High Precision

Product Details:
Place of Origin: Xi'an, Shaanxi, China
Brand Name: XZH TEST
Certification: ISO,CE
Model Number: XHBP-44/44
Detail Information
Place of Origin:
Xi'an, Shaanxi, China
Brand Name:
XZH TEST
Certification:
ISO,CE
Model Number:
XHBP-44/44
Wide Voltage Input:
380/220V±15%/50Hz±5%
Precision Frequency Regulation:
0.1Hz Sensitivity, <0.05% Instability
Quality Factor Range:
30～90
Full-power Continuous Operation:
60 Minutes
Max Test Capacity:
1000kVA
Resonant Voltage Waveform:
Pure Sine Wave, Waveform Distortion <1.0%
Highlight:

High Light

Highlight:

lightweight resonance experimental apparatus

,

low power consumption hipot tester

,

high precision AC DC tester

Trading Information
Minimum Order Quantity:
1 unit
Price:
Negotiable
Packaging Details:
wooden packaging
Delivery Time:
8-10 days
Payment Terms:
T/T
Supply Ability:
2000units/year
Product Description
Product Introduction

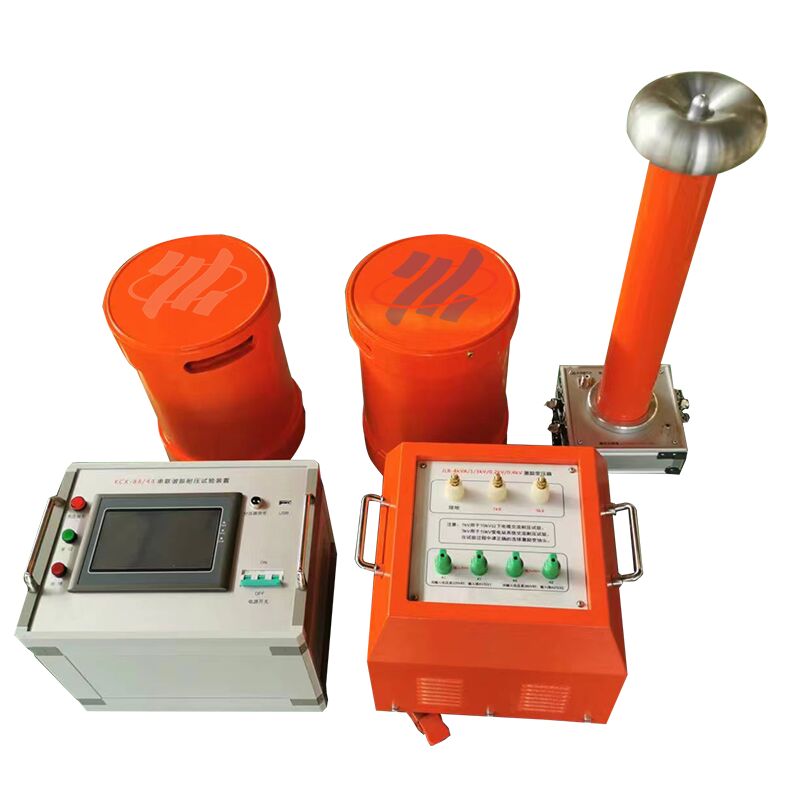

The XHBP series variable frequency resonant test device is an integrated testing solution consisting of core components: variable frequency control power supply, excitation transformer, reactor and capacitive voltage divider. Its flexible design allows the connection of a rectifier silicon stack post capacitive voltage divider, enabling seamless DC withstand voltage testing for various equipment.

Outstanding Performance Traits
Space-saving & portable reactors: Same voltage class and capacity with reduced volume and weight for easy handling.
Low heat generation under rated load, ensuring long-term stable operation.
Advanced dry-type epoxy casting process delivers exceptional mechanical strength and reliable electrical insulation.
High-performance VF control power supply: Abundant capacity margin, comprehensive protection functions, perfect sine wave output and consistent stability.
User-friendly operation with multiple customizable working modes to fit diverse testing demands.
Convenient on-site power supply via universal 220V or 380V single-phase power input.
Core Technical Parameters
Rated output voltage: Up to 500kV (AC RMS)
Output frequency range: 20 to 300Hz
Resonant voltage waveform: Pure sine wave, waveform distortion <1.0%
Max test capacity: 1000kVA
Full-power continuous operation: 60 minutes
Quality factor range: 30～90
Precision frequency regulation: 0.1Hz sensitivity, <0.05% instability
Wide voltage input: 380/220V±15%/50Hz±5%
