Professional Series Resonance Experimental Apparatus | HV Insulation Test for Power System
Professional Series Resonance Experimental Apparatus | HV Insulation Test for Power System
  • Professional Series Resonance Experimental Apparatus | HV Insulation Test for Power System

Professional Series Resonance Experimental Apparatus | HV Insulation Test for Power System

Product Details:
Place of Origin: Xi'an, Shaanxi, China
Brand Name: XZH TEST
Certification: ISO,CE
Model Number: XHBP-135/108
Detail Information
Place of Origin:
Xi'an, Shaanxi, China
Brand Name:
XZH TEST
Certification:
ISO,CE
Model Number:
XHBP-135/108
Rated Output Voltage:
500kV Max (AC RMS)
Output Frequency:
20 To 300Hz
Resonant Voltage Waveform:
Pure Sine Wave, Distortion Rate <1.0%
Test Capacity:
1000kVA Max
Full-power Continuous Operation:
60 Minutes
Highlight:

High Light

Highlight:

HV insulation test apparatus

,

Resonance experimental power tester

,

AC DC hipot test equipment

Trading Information
Minimum Order Quantity:
1 unit
Price:
Negotiable
Packaging Details:
wooden packaging
Delivery Time:
8-10 days
Payment Terms:
T/T
Supply Ability:
2000units/year
Product Description
Product Overview

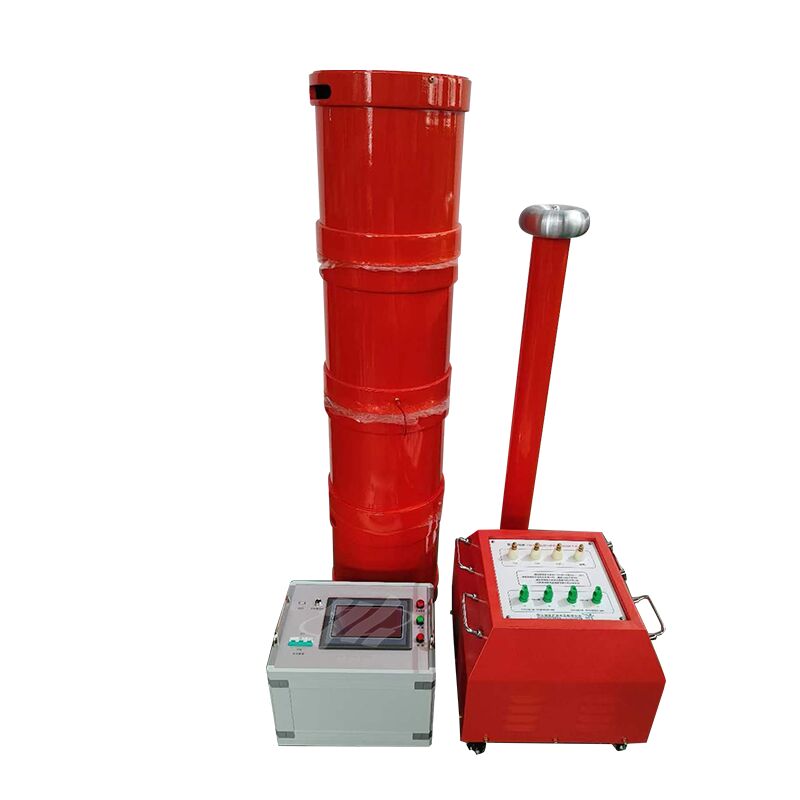

XHBP series variable frequency resonant test device comprises variable frequency control power supply, excitation transformer, reactor and capacitive voltage divider as main parts. A rectifier silicon stack connected after the capacitive voltage divider enables DC withstand voltage testing of equipment.

Performance Features
  • Compact and lightweight reactors for the same voltage and capacity rating.
  • Low temperature rise under rated load.
  • Dry-type epoxy casting for high mechanical strength and good electrical insulation.
  • Variable frequency control power supply with large capacity margin, powerful protection, high-quality output waveform and stable performance.
  • Easy operation with multiple working modes.
  • Convenient on-site power access via 220V or 380V single-phase power.
Technical Parameters
  • Rated output voltage: 500kV max (AC RMS)
  • Output frequency: 20 to 300Hz
  • Resonant voltage waveform: Pure sine wave, distortion rate <1.0%
  • Test capacity: 1000kVA max
  • Full-power continuous operation: 60 minutes
  • Quality factor: 30 to 90
  • Frequency regulation: 0.1Hz sensitivity, <0.05% instability
  • Working power: 380/220V±15%, 50Hz±5%

    Professional Series Resonance Experimental Apparatus | HV Insulation Test for Power System 0
