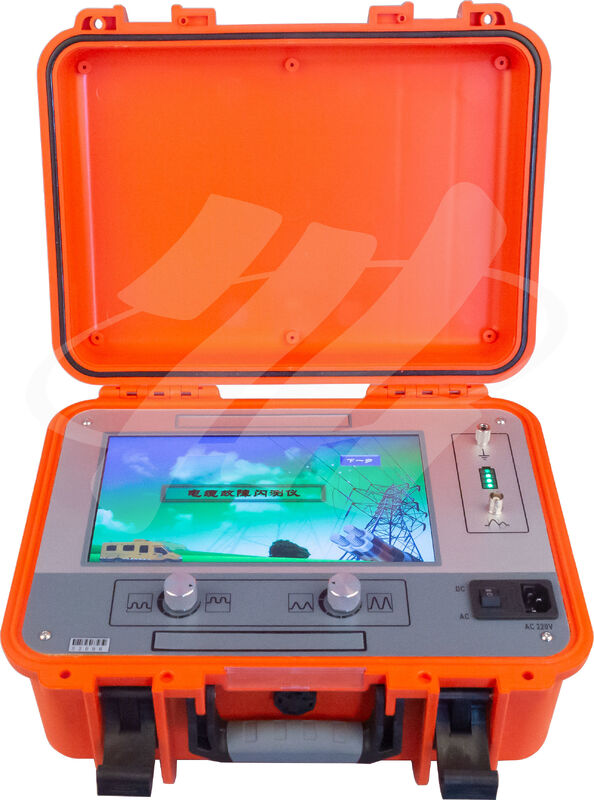

XHGG501D
XHGG501D underground cable fault locator, simple operation software interface, single-chip centralized control, touch operation mode, built-in large-capacity lithium-ion battery, stable and reliable, easy to use.
This cable fault locator is a special instrument for measuring and analyzing power cable fault status and fault distance. This cable fault locator adopts modern electronic technology to realize signal filtering, acquisition, data processing, graphic display and graphic analysis to complete cable speed measurement, cable length test, cable fault distance test, resistance test.XHGG501D is suitable for low-resistance, short-circuit, open-circuit and disconnection faults, as well as leakage high-resistance and flashover high-resistance faults of power cables, coaxial cables, street light cables, buried wires, etc. of various materials with different cross-sections and different media.
Product Features
• Industrial grade 10" LCD display, working temperature -20℃～+60℃
• Single-chip centralized control, touch operation mode, strong anti-interference ability
• It has functions such as distance measurement, speed measurement and resistance measurement
• Fully automatic continuous sampling, waveform capture is timely and accurate
• With low-voltage pulse sampling method, flashover sampling method
• Built-in large-capacity battery pack, easy to use
• Adopt protective case, not lower than PI54
Product Composition
|
Instrument Composition List
|
|
name
|
quantity
|
|
name
|
quantity
|
|
|
Cable fault pre-locator
|
1
|
|
Single Q line
|
1
|
|
|
Double Q line
|
1
|
|
sampler
|
1
|
|
|
power cable
|
1
|
|
Fuse
|
some
|
|
|
Ground wire
(optional)
|
1
|
|
|
|
|
