Circuit Breaker Analyzer
>
Customization SF6 Humidity Purity Decomposition Analyzer within Power Testing

Customization SF6 Humidity Purity Decomposition Analyzer within Power Testing

Product Details:
Place of Origin: Xi'an, Shaanxi, China
Brand Name: XZH TEST
Certification: ISO ,CE
Model Number: XHZH309
Detail Information
Place of Origin:
Xi'an, Shaanxi, China
Brand Name:
XZH TEST
Certification:
ISO ,CE
Model Number:
XHZH309
Model NO.:
XHZH309
Trademark:
XZH TEST
HS Code:
854320100
Supply Ability:
1000 Pieces /Year
Customization:
Available
After-sales Service:
Warranty Certificate
Trading Information
Minimum Order Quantity:
1 unit
Packaging Details:
wooden case
Delivery Time:
5-8 days
Payment Terms:
T/T
Supply Ability:
1000 PCS/Year
Product Description

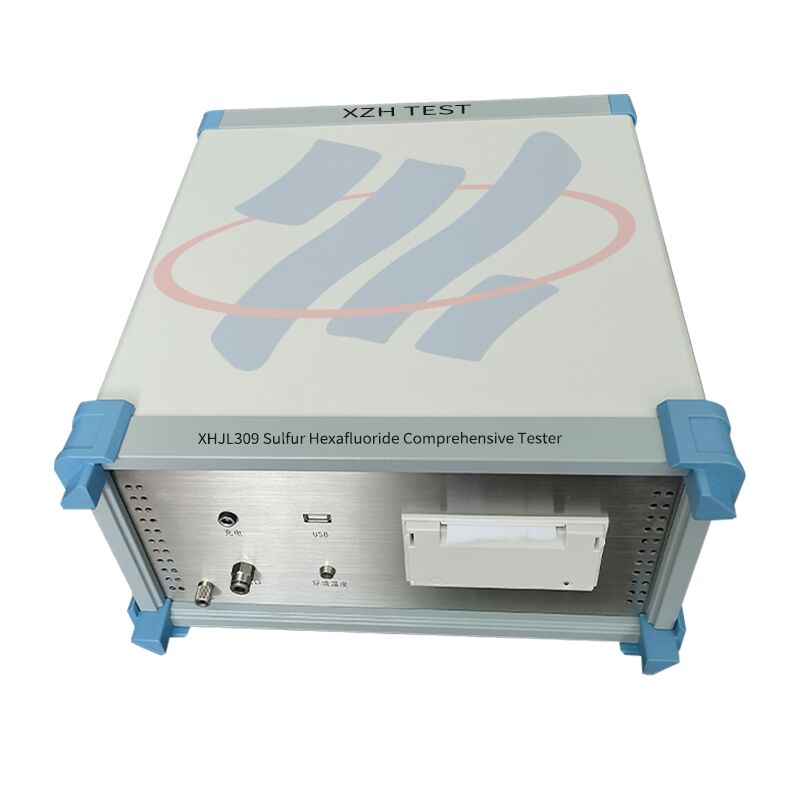

XHZH309 Customization SF6 Humidity Purity Decomposition Analyzer within Power Testing


SF6 comprehensive tester  is a moisture meter, SF6 purity meter, SF6 decomposition products in one analyzer, will use three instruments to achieve the original function, focusing on a single instrument. A site survey, to complete the three indicators detection, gas saving devices, saving two-thirds of a measurement gas usage, while reducing the user's workload and improve work efficiency.
Customization SF6 Humidity Purity Decomposition Analyzer within Power Testing 0

Rapid gas province: boot into the status of each measuring SF6 gas dew point measuring time intervals of about 5min, SF6 purity measurement time SF6 decomposition is about 2min.

Self-locking joints: Germany imported self-locking connectors, safe and reliable, no leaks.

Data storage: design of large capacity, can store up to 200 groups of test data.

curve function: Large screen curve shows the dew point measurement process.

clear display: LCD direct display dew point, moisture (ppm), SF6 purity, SO2, H2S, CO content of the ambient temperature, humidity, time and date, etc..

Built-in Power: Built 4Ah rechargeable lithium battery, a sufficient continuous work for 10 hours.

Customization SF6 Humidity Purity Decomposition Analyzer within Power Testing 1
Customization SF6 Humidity Purity Decomposition Analyzer within Power Testing 2


Product Parameters


Purity

Measuring range

0% to 100%

Accuracy

± 0.5%

Measuring time

<2 minutes.

Dew point measurement range

-80 ºC ~ + 20 ºC

Accuracy

± 1.0 ºC (-60 ºC ~ + 20 ºC)

± ºC (-80 ºC ~ -60 ºC)

Response time

(+ 20 ºC) 63% for an 5 seconds, 90% of the required 45 seconds (-60 ºC ~ + 20 ºC)

63% of the required 10 seconds, 90% required 240 seconds (+ 20 ºC ~ -60 ºC)

H2S

measurement range

0 ~ 100ppm

The minimum detectable amount

0.1ppm

Accuracy

± 0.5%

Repeatability

2%

SO2

measurement range

0 ~ 100ppm

The minimum detectable amount

0.1ppm

Accuracy

± 0.5%

Repeatability

2%

CO

measurement range

0 ~ 100ppm

The minimum detectable amount

0.1ppm

Accuracy

± 0.5%

Repeatability

2%

Ambient temperature

-30 ºC ~ + 60 ºC

Humidity

0 ~ 100% RH

Power

AC 220VBuilt-in rechargeable battery

Battery performance Charging time(20 hours; 10 hours or more.)

Weight

5 kg

Dimensions

250 × 150 × 300mm3

Operating temperature

-40 ºC ~ + 80 ºC
