Customization High Voltage Shielded Cable Thumper for Cable Fault Locating

Name: Customization High Voltage Shielded Cable Thumper for Cable Fault Locating
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHHV535-4TS
Price: 15000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE, ISO
Model Number:	XHHV535-4TS

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE, ISO

Model Number:

XHHV535-4TS

Specification:

710x525x880mm

Trademark:

XZH TEST

Supply Ability:

2000PCS/Year

After-sales Service:

Warranty Card

Warranty:

1 Year

Highlight:

High Light

Highlight:

high voltage shielded cable thumper

customizable cable fault locator

surge generator for cable locating

Trading Information

Minimum Order Quantity:

1 unit

Packaging Details:

wooden case

Delivery Time:

5-8 days

Payment Terms:

T/T

Supply Ability:

2000PCS/Year

Product Description

Customization 8/16/32kv High Voltage Shielded Cable Thumper for Cable Fault Locating

Basic Info.

Model NO.

XHHV535-4TS

Usage

Audio Cable Tester, Digital Cable Tester, Underground Cable Tester

Power

Electricity

Certification

CE, ISO

Customized

Color

Black

Transport Package

Wooden Case

Specification

750*530*890mm

Trademark

XZH TEST

Origin

China

HS Code

9030899090

XHHV High voltage impulse generator is mainly used for 32 kv and lower voltage cable fault impact discharging testing, also be used for DC withstand voltage testing of other electrical equipment. The power equipment integrated with the DC High voltage power source, energy-saving capacitor, discharging sphere interval into one body. The machine adopts Ergonomic design of operating mode, safe and reliable.

The machine has three voltage 8kv,16kv,32kv. The user can select a voltage according to the test situation. It is more convenience for different kind of cable fault testing. The machine also has the function of auto discharging and manual discharging,which provide more selection for user.

The XHHV Series surge generator provide strong power for pinpointing locating when use our model XHDD503. which can locate the fault point accurately and quickly.

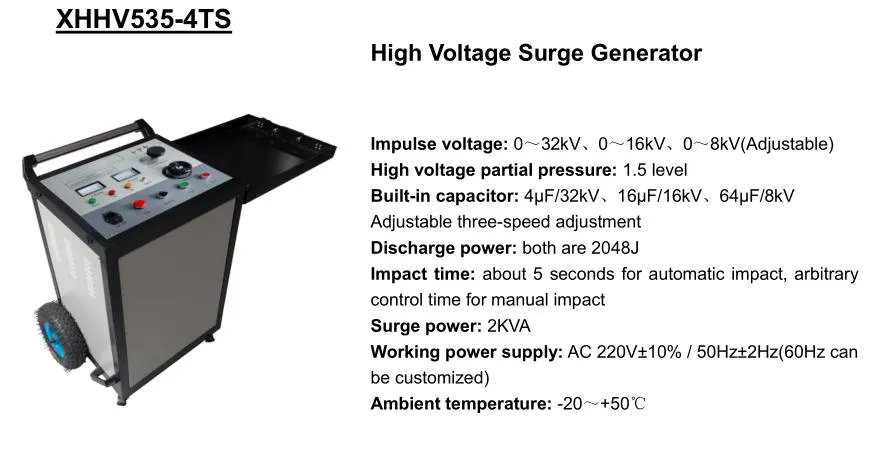

Customization High Voltage Shielded Cable Thumper for Cable Fault Locating 0

High voltage pulse output is even and controllable.
With current and voltage 1.5 pointer display and the surge discharge process is intuitive and clear.
High voltage side measurement is real-time and accurate.
With zero start protection function, and potentiometer return to Zero output function, safe and reliable.
Three voltage range and capacitors, which is easy to change the voltage as customer's requirement.
This unique design of high voltage measurement, at stop state, it will auto discharge the capacitor electricity.
Discharge time with 2 modes: Timing and manual.
With DC Withstand voltage test function.
Internal installation high precision test cable fault sampling waveform module.
Humanized design trolley device, easy to move.

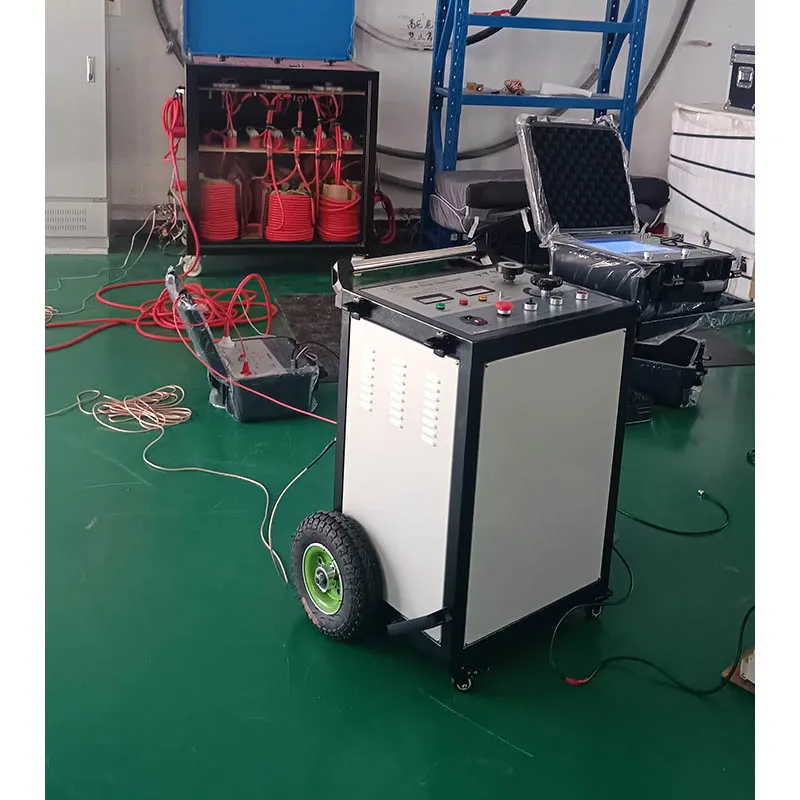

Customization High Voltage Shielded Cable Thumper for Cable Fault Locating 1

The surge HV voltage	0-8kv/16kv/32kv
High voltage divider	Voltage Accuracy 1.5 grade
Inside capacitor	4μF/32kV,16μF/16kV,64μF/8kV
Surge time	Auto surge about 4s, also can control by hands
Surge energy	2048J
Surge power	2KVA
Size	534L×444W×805H
Weight	120kg
Power supply	AC 220V + 10% 50Hz/±2Hz
Environment temperature	20 ~ +50 ºC
