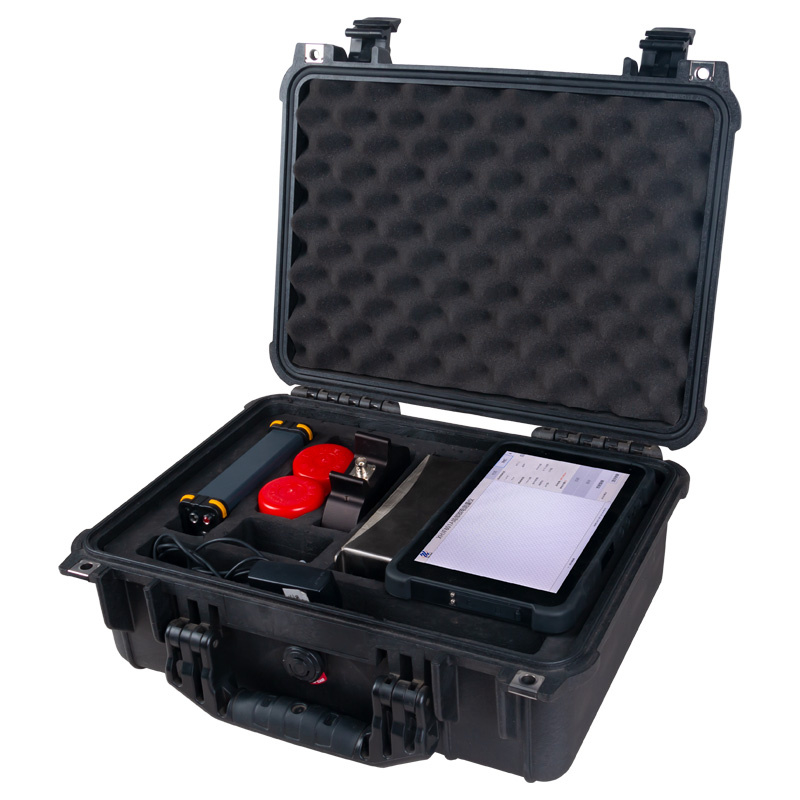

XHJF801S Digital Partial Discharge Tester for Power Equipment
XHJF801S Digital Partial Discharge Tester for Power Equipment
  • XHJF801S Digital Partial Discharge Tester for Power Equipment
  • XHJF801S Digital Partial Discharge Tester for Power Equipment
  • XHJF801S Digital Partial Discharge Tester for Power Equipment
  • XHJF801S Digital Partial Discharge Tester for Power Equipment

XHJF801S Digital Partial Discharge Tester for Power Equipment

Product Details:
Place of Origin: China
Brand Name: XZH TEST
Certification: CE/ISO
Model Number: XHJF801S
Detail Information
Place of Origin:
China
Brand Name:
XZH TEST
Certification:
CE/ISO
Model Number:
XHJF801S
Highlight:

High Light

Highlight:

digital partial discharge tester

,

power equipment diagnostic tool

,

cable fault locator device

Trading Information
Minimum Order Quantity:
1 Unit
Packaging Details:
wooden packaging
Delivery Time:
5-8 Work days
Payment Terms:
T/T
Supply Ability:
1000 units per year
Product Description
XHJF801S Digital Partial Discharge Tester
XHJF801S Digital Partial Discharge Tester for Power Equipment 0
The XHJF801S digital partial discharge tester is a high-performance measurement and analysis instrument featuring a dual-channel embedded system with TFT touch screen. Designed for stability and reliability with low failure rates.
Main Features
  • Specialized instrument for measuring and analyzing insulation performance of power equipment
  • Integrates modern electronic and computer technology for automated signal processing
  • Performs signal amplification, filtering, data acquisition, and processing automatically
  • Generates test reports and graphical displays of partial discharge measurements
Technical Specifications
Parameter Specification
Channels 2 electrical signal interfaces, 1 external synchronization interface
Sampling Rate 0.5M, 1M, 2.5M, 5M, 10M, 20M (selectable)
Sampling Accuracy 12bit
Range Switching 60dB, 40dB, 20dB, 0dB, -20dB (5 ranges total)
Band Range 20k-100kHz, 80k-200kHz, 40k-300kHz
Range Nonlinearity Error 5%
Sensitivity 0.1pC
Testable Product Capacitance Range 6pF ~ 250μF
Test Power Frequency Range 50 ~ 400Hz
Display 7" TFT true color touch LCD (800×480 resolution)
Storage 256MB DDR2, 16GB SD card (expandable to 32GB)
Interfaces RS232, USB, electrical signal, SMA, SD card slot, network port, ground button
CPU 533MHz, WINCE6.0 OS
Storage Temperature -20°C to 60°C
Dimensions 350mm × 245mm × 175mm
Weight 5.8kg
