XHJS1000R Dielectric Loss Tester 0.5kV-12kV for Power Equipment
XHJS1000R Dielectric Loss Tester 0.5kV-12kV for Power Equipment
  • XHJS1000R Dielectric Loss Tester 0.5kV-12kV for Power Equipment
  • XHJS1000R Dielectric Loss Tester 0.5kV-12kV for Power Equipment
  • XHJS1000R Dielectric Loss Tester 0.5kV-12kV for Power Equipment

XHJS1000R Dielectric Loss Tester 0.5kV-12kV for Power Equipment

Product Details:
Place of Origin: China
Brand Name: XZH TEST
Certification: CE/ISO
Model Number: XHJS1000R
Detail Information
Place of Origin:
China
Brand Name:
XZH TEST
Certification:
CE/ISO
Model Number:
XHJS1000R
Highlight:

High Light

Highlight:

Dielectric Loss Tester 0.5kV-12kV

,

Power Equipment Dielectric Tester

,

Cable Fault Locator with warranty

Trading Information
Minimum Order Quantity:
1 Unit
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Product Description
Transformer Dielectric Loss Tester, 10kV Dielectric Loss 0.5kV~10kV
Product Description
The XHJS1000R differ-frequency dielectric loss tester is a high-precision instrument designed for testing the dielectric loss tangent and capacitance of high-voltage power equipment in power plants and substations.
This integrated unit features a built-in dielectric loss test bridge, variable frequency voltage regulator, step-up transformer, and SF6 high stability standard capacitor. The test high voltage source is generated internally and boosted by the transformer, with frequency options including 50Hz, 47.5Hz-52.5Hz, 45Hz-55Hz, 60Hz, 57.5Hz-62.5Hz, and 55Hz-65Hz.
Utilizing digital notch technology, the instrument effectively eliminates power frequency electric field interference, ensuring accurate measurements even in strong electric fields. It's suitable for both powered and power-off testing scenarios and includes an insulating oil cup with temperature control for dielectric loss testing of insulating oil.

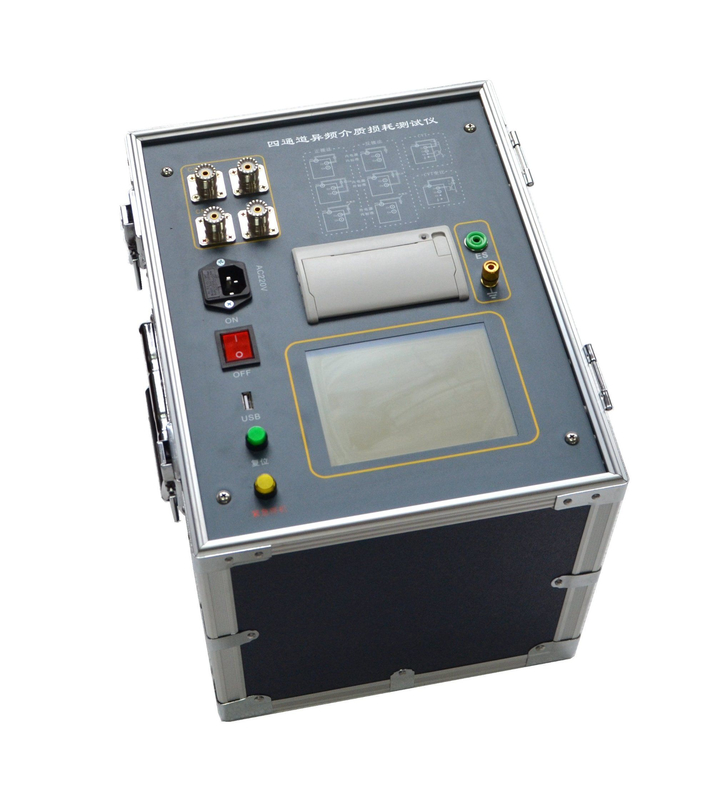

XHJS1000R Dielectric Loss Tester 0.5kV-12kV for Power Equipment 0
Technical Specifications
  • Operating Conditions: -15°C to 40°C, RH <80%
  • Power Supply: AC 220V±10% (generator compatible)
  • High Voltage Output: 0.5kV to 12kV (0.1kV steps), 2% accuracy, 167mA max current, 2000VA capacity
  • Self-excited Power: AC 0V-50V/15A at 50Hz/60Hz
  • Frequency Options: Single frequency 45Hz/55Hz, 47.5Hz/52.5Hz, 55Hz/65Hz, 57.5Hz/62.5Hz with automatic double frequency conversion
  • Resolution: tgδ: 0.001%, Cx: 0.001pF
  • Accuracy: △tgδ: ±(reading ×1.0%+0.040%), △Cx: ±(reading ×1.0%+1.00PF)
  • Measurement Range: tgδ unlimited, Cx 15pF to 300nF (varies by voltage)
  • CVT Ratio: 10-10000 with 0.1% accuracy and 0.01 resolution
  • Dimensions: 350×270×270mm (host), 350×270×160mm (accessory box)
  • Memory: 200 test groups with USB data storage support
  • Weight: 22.75kg (host)
XHJS1000R Dielectric Loss Tester 0.5kV-12kV for Power Equipment 1 XHJS1000R Dielectric Loss Tester 0.5kV-12kV for Power Equipment 2
Field Testing
XHJS1000R Dielectric Loss Tester 0.5kV-12kV for Power Equipment 3
