XHJS1000R Dielectric Loss Tester 0.5kV-10kV for Power Equipment
XHJS1000R Dielectric Loss Tester 0.5kV-10kV for Power Equipment
  • XHJS1000R Dielectric Loss Tester 0.5kV-10kV for Power Equipment
  • XHJS1000R Dielectric Loss Tester 0.5kV-10kV for Power Equipment
  • XHJS1000R Dielectric Loss Tester 0.5kV-10kV for Power Equipment

XHJS1000R Dielectric Loss Tester 0.5kV-10kV for Power Equipment

Product Details:
Place of Origin: China
Brand Name: XZH TEST
Certification: CE/ISO
Model Number: XHJS1000R
Detail Information
Place of Origin:
China
Brand Name:
XZH TEST
Certification:
CE/ISO
Model Number:
XHJS1000R
Highlight:

High Light

Highlight:

Dielectric Loss Tester for power equipment

,

10kV Dielectric Loss Tester

,

Cable fault locator with dielectric testing

Trading Information
Minimum Order Quantity:
1 Unit
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Product Description
Transformer Dielectric Loss Tester, 10kV Dielectric Loss 0.5kV~10kV
Product Overview

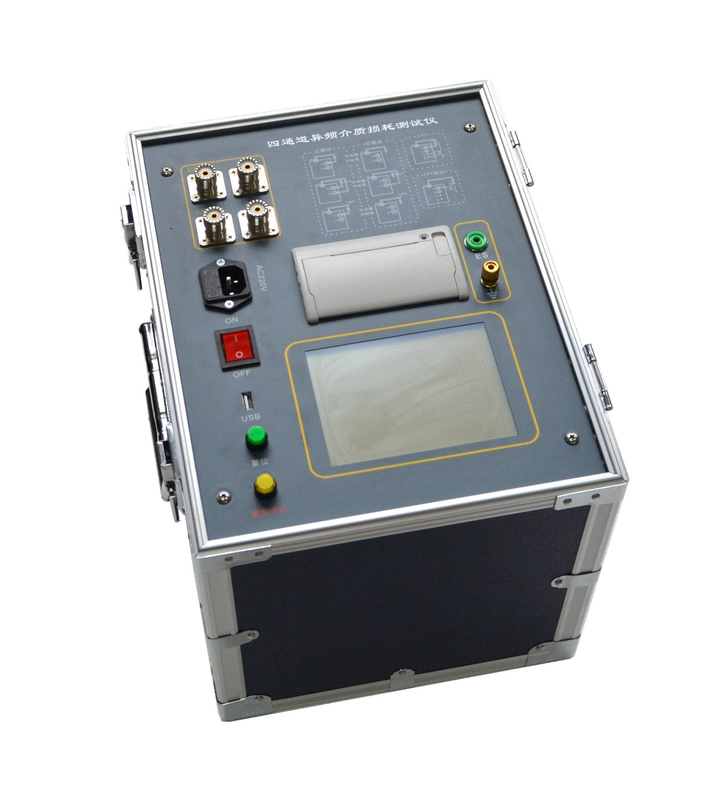

The XHJS1000R differ-frequency dielectric loss tester is a high-precision instrument designed for testing the dielectric loss tangent and capacitance of high-voltage power equipment in power plants and substations. This integrated unit features a built-in dielectric loss test bridge, variable frequency voltage regulator, step-up transformer, and SF6 high stability standard capacitor.
XHJS1000R Dielectric Loss Tester 0.5kV-10kV for Power Equipment 0
Key Features
  • Variable frequency testing capability (45Hz-65Hz range)
  • Digital notch technology for power frequency interference elimination
  • Built-in insulating oil cup with temperature control for oil dielectric loss testing
  • Integrated structure with test high voltage source generated internally
  • Suitable for both power-on and power-off testing scenarios
Technical Specifications
Operating Conditions: -15°C to 40°C, RH <80%
Power Supply: AC 220V±10% (generator compatible)
High Voltage Output: 0.5kV to 12kV (0.1kV steps), 2% accuracy, 167mA max current, 2000VA capacity
Self-excited Power: AC 0V-50V/15A at 50Hz/60Hz
Frequency Options: Single frequency (45Hz/55Hz, 47.5Hz/52.5Hz, 55Hz/65Hz, 57.5Hz/62.5Hz) with automatic double frequency conversion
Resolution: tgδ: 0.001%, Cx: 0.001pF
Accuracy: tgδ: ±(reading*1.0%+0.040%), Cx: ±(reading*1.0%+1.00PF)
Measurement Range: tgδ unlimited, Cx 15pF to 300nF (varies by voltage)
CVT Testing: Ratio range 10-10000, 0.1% accuracy, 0.01 resolution

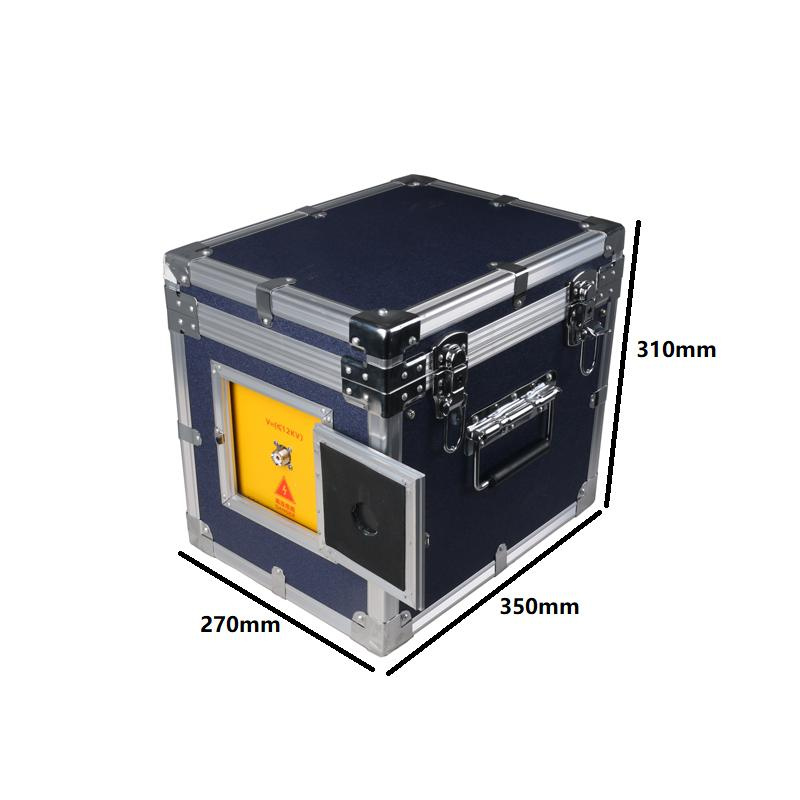

Dimensions: Host: 350×270×270mm, Accessory box: 350×270×160mm
Memory: 200 test groups with USB data storage support
Weight: 22.75kg (host)
XHJS1000R Dielectric Loss Tester 0.5kV-10kV for Power Equipment 1 XHJS1000R Dielectric Loss Tester 0.5kV-10kV for Power Equipment 2
Field Testing
XHJS1000R Dielectric Loss Tester 0.5kV-10kV for Power Equipment 3
