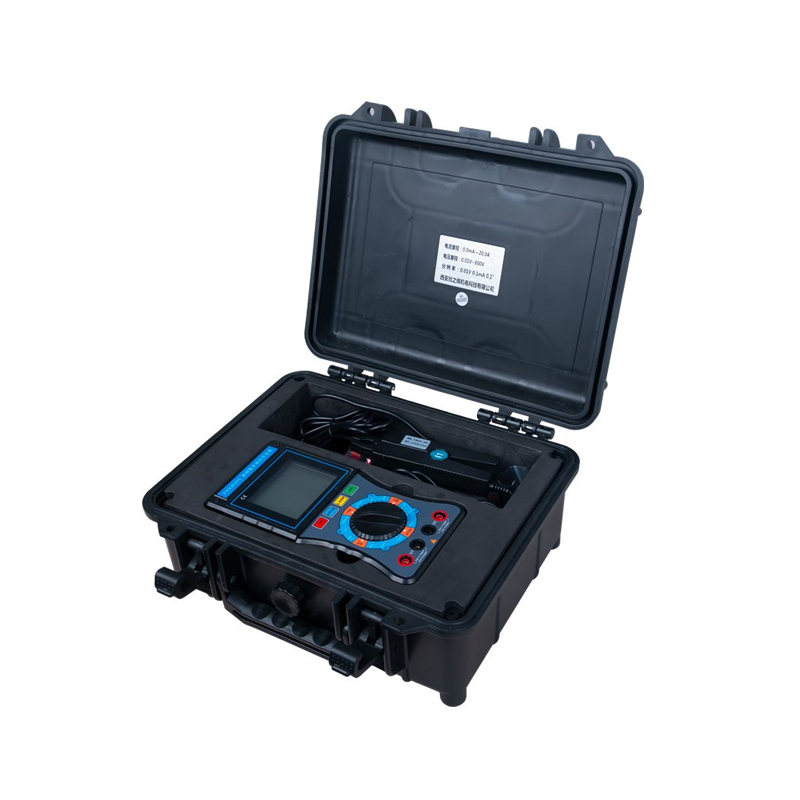

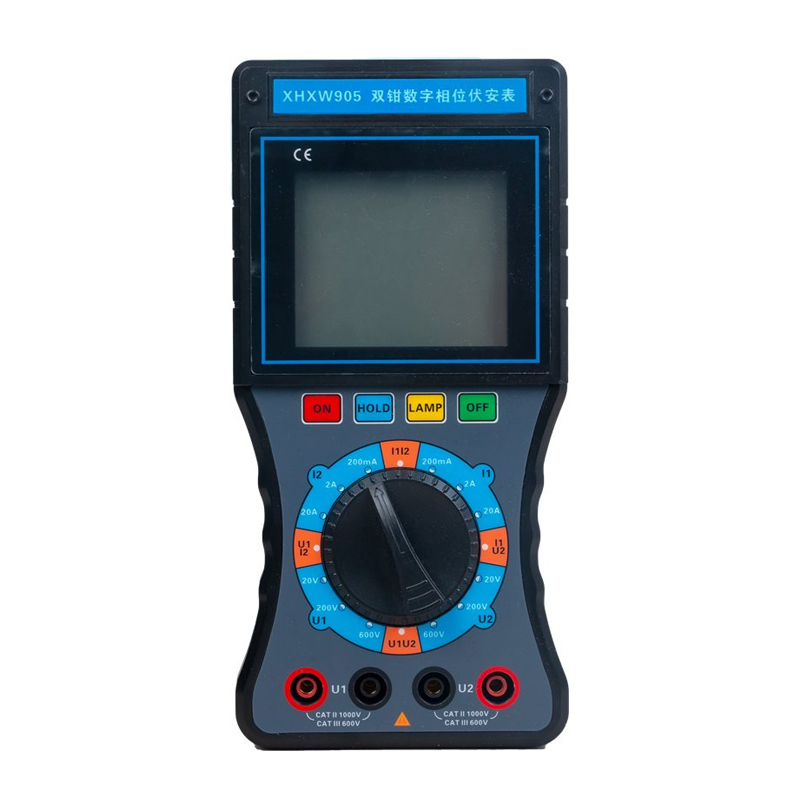

XHXW905 Dual-Clamp Phase Voltammeter for Cable Fault Detection

Name: XHXW905 Dual-Clamp Phase Voltammeter for Cable Fault Detection
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHXW905
Price: 1,050.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE/ISO
Model Number:	XHXW905

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE/ISO

Model Number:

XHXW905

Highlight:

High Light

Highlight:

dual-clamp cable fault voltammeter

phase voltammeter for cable detection

cable fault locator with dual-clamp

Trading Information

Minimum Order Quantity:

1 Unit

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

1000 units per year

Product Description

Double-Clamp Phase Voltammeter - The Ultimate Cable Fault Locator for On-Site Inspections

The XHXW905 double-clamp phase voltammeter (also known as automatic double-clamp phase voltammeter) is a fully automatic, multi-functional digital instrument specifically designed for on-site testing. This comprehensive upgrade of phase voltammeter technology reduces operational complexity and minimizes potential errors, featuring high precision, stability, low power consumption, and user-friendly operation.

Key Features

Simultaneously measures two AC voltages, currents, and phase relationships
Measures frequency, phase sequence, power parameters (active, reactive, apparent)
Identifies transformer wiring groups and tests inductive/capacitive circuits
Tests secondary circuits and bus differential protection systems
Verifies watt-hour meter wiring correctness and assists in line equipment repair
240×160 dot LCD display with all parameters visible simultaneously
USB-RS232 interface for data transfer (stores 1500 datasets)
Two current clamp options for different wiring environments
Anti-vibration, anti-skid, high-insulation sheath design

Technical Specifications

Function	Simultaneous measurement of AC voltage, current, phase relationships, frequency, phase sequence, power parameters (active, reactive, apparent), power factor, transformer wiring group identification, inductance/capacitance testing, secondary circuit testing, bus differential protection system analysis
Power Supply	DC9V Alkaline dry battery (1.5V AA×6)
Measuring Range	Voltage: AC 0.00V~600V Current: AC 0.0mA~20.0A Phase: 0.0°~360.0° Frequency: 45.00Hz~65.00Hz Active power: 0.0W~12kW Reactive power: 0.0VAR~12kVAR Apparent power: 0.0VA~12kVA Power factor: -1~+1
Jaw Size	Small-pointed current clamp: 7.5mm×13mm Round mouth current clamp: 35mm×40mm
Resolution	Voltage: 0.01V Current: 0.1mA Phase: 0.1° Frequency: 0.01Hz Power parameters: 0.1 unit Power factor: 0.001
Data Storage	1500 datasets
Interface	USB-RS232 for data upload and computer analysis
Power Consumption	Backlight on: 70mA (14 hours continuous) Backlight off: 40mA (20 hours continuous)
Dimensions	196mm×92mm×54mm
Detection Rate	Approximately 2 seconds per measurement
Data Retention	HOLD function with "HD" symbol display
Auto Shutdown	After approximately 15 minutes of inactivity
Backlight	Yes, suitable for low-light conditions
Battery Indicator	Low voltage warning below 7.2V
Weight	Host: 550g (with battery) Small clamp: 170g×2 Round clamp: 185g×2 Test line: 250g
Cable Lengths	Test leads: 1.5m Current clamp wires: 2m×φ5mm
Operating Conditions	-10°C to 40°C; below 80% RH
Storage Conditions	-10°C to 60°C; below 70% RH
Input Resistance	2MΩ (test voltage input)
Safety Standards	IEC61010-1 CAT III 600V, IEC61010-031, IEC61326, Pollution degree 2

Construction & Safety

The XHXW905 features double insulation with anti-vibration jacket, withstands 1000V/50Hz AC voltage between circuit and enclosure for 1 minute, and maintains ≥100MΩ insulation between instrument line and sheath shell.
