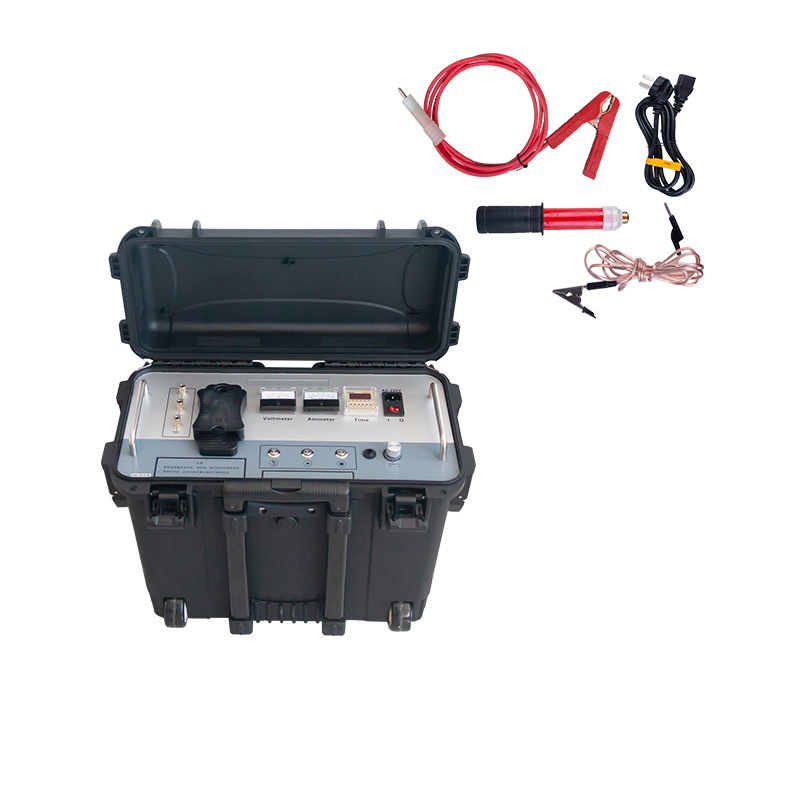

10kV Portable Surge Generator 864J for Cable Fault Testing

Name: 10kV Portable Surge Generator 864J for Cable Fault Testing
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHHV510-10L
Price: 15000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE/ISO
Model Number:	XHHV510-10L

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE/ISO

Model Number:

XHHV510-10L

Highlight:

High Light

Highlight:

10kV portable surge generator

864J cable fault tester

high voltage surge generator with warranty

Trading Information

Minimum Order Quantity:

1 Unit

Packaging Details:

wooden packahing

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

1000 units per year

Product Description

10kV Low Voltage Surge Generator 500J Portable HV Pulse Generator

Low Voltage Pulse Generator XHHV510-10L

The XHHV510-10L high-voltage pulse generator is designed for shock discharge during cable fault testing and DC withstand voltage testing of electrical equipment. This integrated device replaces traditional heavy test transformers, operation boxes, and pulse energy storage capacitors with a lightweight, portable solution.

Key Specifications

Impulse voltage	0-12kV (optional)
High voltage partial pressure	2.5 class
Built-in capacitor	12μF
Discharge power	0-864J
Output voltage polarity	Negative polarity
Impact power	400W
Over temperature protection	85℃
Working power supply	AC 220V±10%/50Hz±2Hz(60Hz)
Ambient temperature	-20~+50℃
Dimensions (mm)	540L×300W×450H
Weight	≤25kg

Product Features

Over-current, over-voltage, and overheating automatic protection
DC withstand voltage and impact discharge functions
Uniform and controllable high-voltage pulse output
Super short-circuit protection with ground short-circuit capability
Dual 2.5-level pointer meters for current and voltage display
Real-time high-voltage side voltage measurement
Zero start protection and potentiometer zero output function
Unique high-voltage measurement design showing capacitor voltage
Adjustable discharge time within appropriate intervals

Operation Guide

Key operational considerations:

Ensure proper grounding of instrument shell and high-voltage components
Follow correct startup sequence: counterclockwise voltage adjustment before pressing start button
Monitor ammeter and voltmeter during operation
Use discharge button for manual discharge (≤1s duration)
Set discharge time interval as needed

Applications

Primary application in underground cable fault location and power cable fault detection.
