Portable 100A Circuit Resistance Tester

Name: Portable 100A Circuit Resistance Tester
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHHL3200
Price: 7,970.00 USD
Availability: InStock

Product Details:

Place of Origin:	Xi'an Shaanxi China
Brand Name:	XZH TEST
Certification:	ISO CE
Model Number:	XHHL3200

Detail Information

Place of Origin:

Xi'an Shaanxi China

Brand Name:

XZH TEST

Certification:

ISO CE

Model Number:

XHHL3200

Output Current:

100/200A

Resolution:

0.1μΩ

Highlight:

High Light

Highlight:

100A Test Current Circuit Resistance Tester

High Current Circuit Breaker Analyzer

Portable Contact Resistance Tester

Trading Information

Minimum Order Quantity:

1set

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

3000unit/year

Product Description

Product Overview

In compliance with the requirements specified in the new preventive test code for electrical power equipment, this instrument is dedicated to the contact resistance test of various switchgear. The test current shall be not less than one hundred amperes (100A), and the duration of continuous current application must be no less than one minute (1 min). It is also suitable for the resistance testing of busbars, weld joints, wires and cables.

Performance Features
★ Adopts constant current output; the instrument has a high output current and is lightweight;
★ Protective circuit for strong reliability;
★ Features a one-minute test function to meet specified testing requirements;

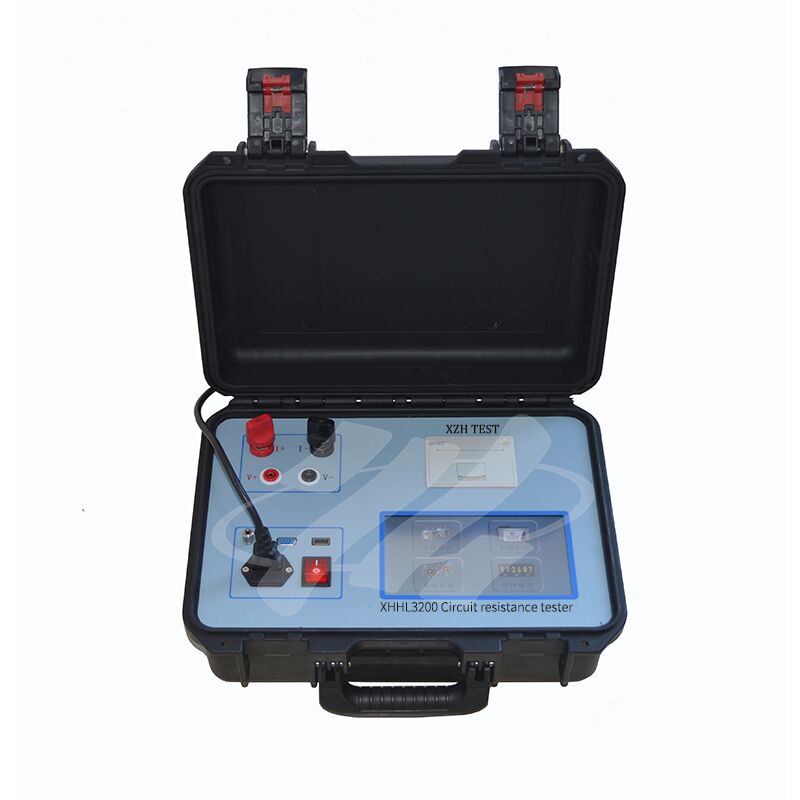

Portable 100A Circuit Resistance Tester 0

Technical Parameters
☆ Output Current: 100/200A
☆ Operating Mode: Timed operation or continuous operation
☆ Measurement Range: 100A: 0～50mΩ 200A: 0～10mΩ
☆ Resolution: 0.1μΩ
☆ Measurement Accuracy: ±(0.5%+3 digits)
☆ Ambient Temperature: -10℃～50℃ ≤85%RH
☆ Power Supply: AC 220V±10% 50±1Hz

Troubleshooting
1. Operators should possess general knowledge of electrical equipment and instruments;
2. After testing, press the reset button and turn off the power switch. Note: It is strictly forbidden to connect or disconnect test cables while the power is on;
3. If the instrument malfunctions, first press the reset button to reset the instrument;
4. Instrument repair must be performed by qualified technicians; do not attempt to repair it yourself;
5. This instrument is used for measuring circuit resistance and is not suitable for measuring inductive circuits;
