Circuit Breaker Analyzer
>

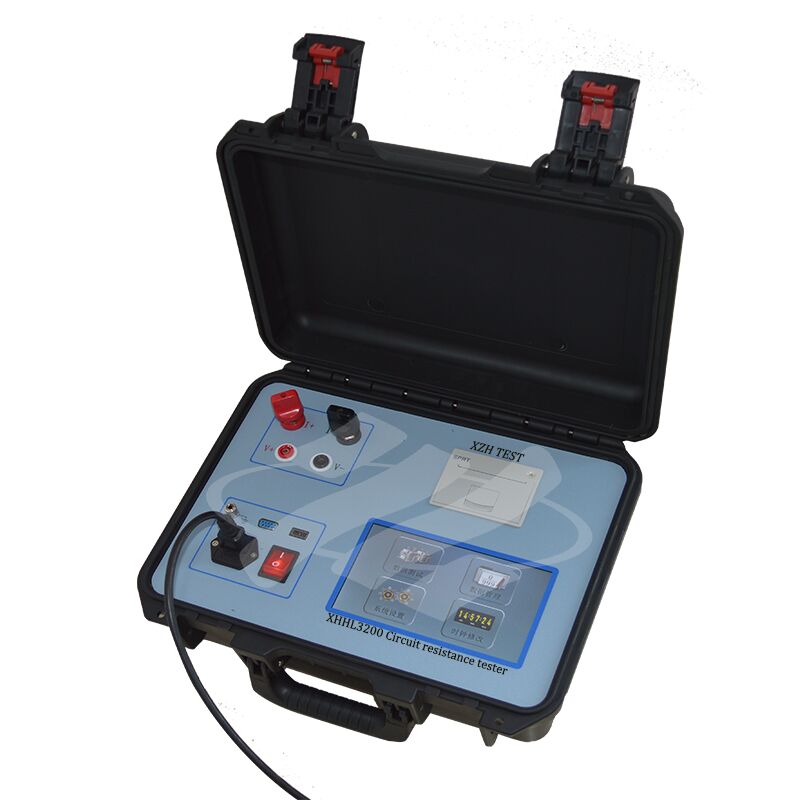

Portable Circuit Resistance Tester with Digital Display
Portable Circuit Resistance Tester with Digital Display
  • Portable Circuit Resistance Tester with Digital Display

Portable Circuit Resistance Tester with Digital Display

Product Details:
Place of Origin: Xi'an Shaanxi China
Brand Name: XZH TEST
Certification: ISO CE
Model Number: XHHL3200
Detail Information
Place of Origin:
Xi'an Shaanxi China
Brand Name:
XZH TEST
Certification:
ISO CE
Model Number:
XHHL3200
Operating Mode:
Timed Operation Or Continuous Operation
Measurement Accuracy:
±(0.5%+3 Digits)
Highlight:

High Light

Highlight:

Constant Current Output Circuit Resistance Tester

,

Portable Circuit Breaker Analyzer

,

Digital Display Contact Resistance Tester

Trading Information
Minimum Order Quantity:
1set
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
3000unit/year
Product Description

Product Overview


This professional testing equipment is developed in strict accordance with the new regulatory requirements for preventive tests of electrical power equipment. Its core function is to conduct contact resistance tests on various switchgear devices. For accurate and reliable test results, the equipment requires a test current of at least one hundred amperes (100A) and a continuous current supply time of not less than one minute. In addition to switchgear testing, it can also be widely applied to the resistance measurement of busbars, welded joints, electric wires and cables in power systems.


Portable Circuit Resistance Tester with Digital Display 0


Performance Features

★ Adopts constant current output; the instrument has a high output current and is lightweight;
★ Protective circuit for strong reliability;
★ Features a one-minute test function to meet specified testing requirements;

Portable Circuit Resistance Tester with Digital Display 1

Technical Parameters


☆ Output Current: 100/200A
☆ Operating Mode: Timed operation or continuous operation
☆ Measurement Range: 100A: 0～50mΩ    200A: 0～10mΩ
☆ Resolution: 0.1μΩ
☆ Measurement Accuracy: ±(0.5%+3 digits)
☆ Ambient Temperature: -10℃～50℃  ≤85%RH
☆ Power Supply: AC 220V±10%  50±1Hz
