Circuit Breaker Analyzer
>

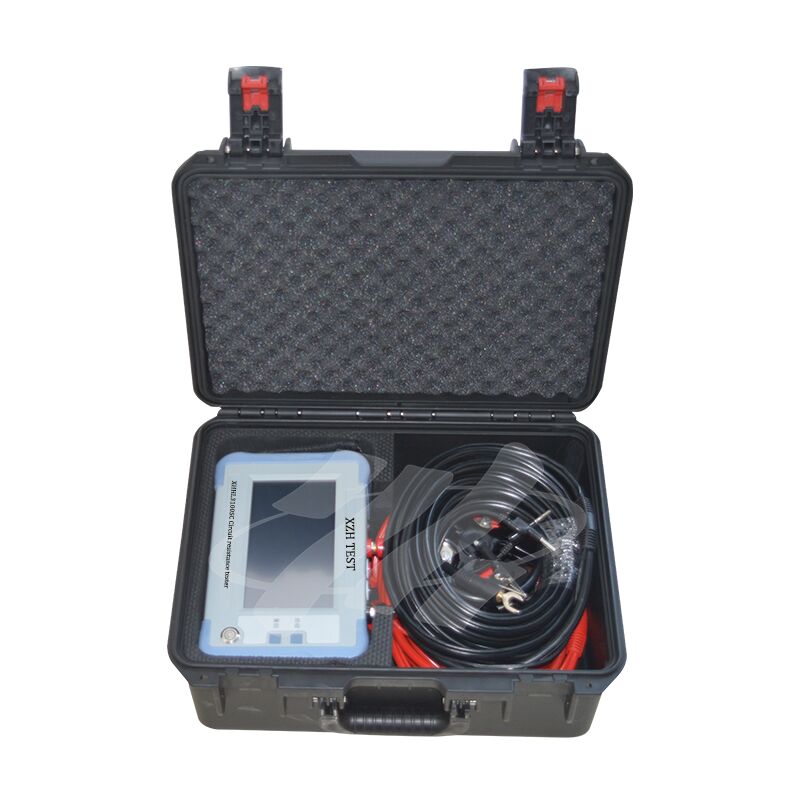

Portable Circuit Resistance Tester with Digital Display
Portable Circuit Resistance Tester with Digital Display
  • Portable Circuit Resistance Tester with Digital Display

Portable Circuit Resistance Tester with Digital Display

Product Details:
Place of Origin: Xi'an Shaanxi China
Brand Name: XZH TEST
Certification: ISO CE
Model Number: XHHL3100SC
Detail Information
Place of Origin:
Xi'an Shaanxi China
Brand Name:
XZH TEST
Certification:
ISO CE
Model Number:
XHHL3100SC
Output Current:
100A
Resolution:
0.1μΩ
Highlight:

High Light

Highlight:

Constant Current Output Circuit Resistance Tester

,

Portable Circuit Breaker Analyzer

,

Digital Display Contact Resistance Tester

Trading Information
Minimum Order Quantity:
1set
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
3000unit/year
Product Description

Product Introduction

Compliant with the requirements of the new code for preventive tests of electrical equipment, this product is specially designed for the conductive loop resistance test of various switchgear. It features a test current of not less than 100A, supports convenient and fast handheld operation, and allows continuous current output for a minimum of one minute. It is also applicable to busbars, weld seams, wires and cables, etc.


Performance Features
Adopts constant current output; the instrument has a high output current and is lightweight;
Protection circuit for high reliability;
Features a one-minute test function to meet specified testing requirements;

Portable Circuit Resistance Tester with Digital Display 0


Technical Parameters
☆ Output Current: 100A
☆ Operating Mode: Timed or continuous operation

☆ Measurement Range: 100A: 0～50mΩ  200A: 0～10mΩ
☆ Resolution: 0.1μΩ
☆ Measurement Accuracy: ±(0.5%+3 digits)
☆ Ambient Temperature: -10℃～50℃  ≤85%RH
☆ Power Supply: AC 220V±10%  50±1Hz

Portable Circuit Resistance Tester with Digital Display 1
