Circuit Breaker Analyzer
>

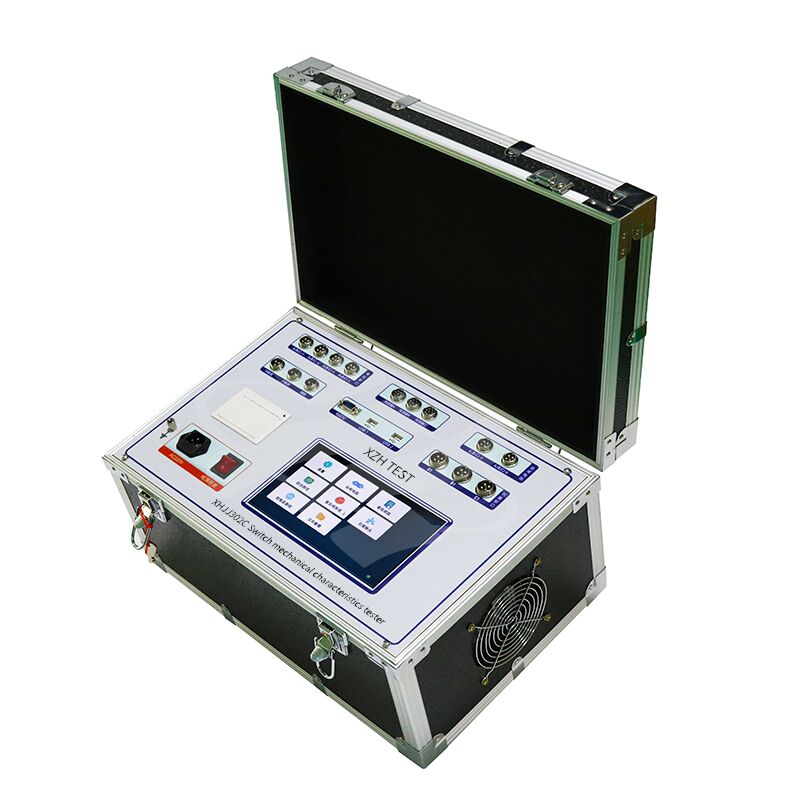

Portable Switch Tester 0.1A-20A for Circuit Breakers
Portable Switch Tester 0.1A-20A for Circuit Breakers
  • Portable Switch Tester 0.1A-20A for Circuit Breakers

Portable Switch Tester 0.1A-20A for Circuit Breakers

Product Details:
Place of Origin: Xi'an Shaanxi China
Brand Name: XZH TEST
Certification: ISO CE
Model Number: XHJJ302C
Detail Information
Place of Origin:
Xi'an Shaanxi China
Brand Name:
XZH TEST
Certification:
ISO CE
Model Number:
XHJJ302C
Closing Resistance:
0～1.3kΩ
Travel Measurement:
0～1000mm
Highlight:

High Light

Highlight:

0.1A to 20A Current Range Switch Mechanical Characteristics Tester

,

Mechanical Characteristics Testing Circuit Breaker Analyzer

,

Portable Design Mechanical Characteristics Tester

Trading Information
Minimum Order Quantity:
1set
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
3000unit/year
Product Description
Product Introduction
Testable equipment scope: all types of vacuum circuit breakers, SF₆ circuit breakers, oil-filled high-voltage circuit breakers, load switches, GIS earthing disconnect switches, contactors, relays, air circuit breakers, etc.

Measurable parameters & waveforms: circuit breaker operation time, phase synchronization, bounce time (number of bounces), stroke, velocity, operating voltage, operating current, actuation voltage, mechanical operation characteristics, etc.

Key performance features: 15KV on-site induced voltage immunity; standard configuration includes 12-channel metal contact time measurement channels.

Portable Switch Tester 0.1A-20A for Circuit Breakers 0

Technical Parameters
☆ DC Power Supply: 35～265V, High instantaneous current: 20A
☆ Time Measurement: 0.01ms～18000ms, Resolution: 0.01ms, ±0.1%
☆ Closing Resistance: 0～1.3kΩ, Resolution: 1Ω, ±1%
☆ Travel Measurement: 0～1000mm, ±1%
☆ Speed ​​Characteristics: 0.001～25.00m/s, ±1%
☆ Voltage Characteristics: 12-250V, ±1%
☆ Current Characteristics: 0.1A～20A, ±2%
☆ Angle Characteristics: 360°, Resolution: 0.5°, ±1%

Portable Switch Tester 0.1A-20A for Circuit Breakers 1
