SF6 dew point meter for circuit breaker analysis

Name: SF6 dew point meter for circuit breaker analysis
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHLD305
Price: 7,970.00 USD
Availability: InStock

Product Details:

Place of Origin:	Xi'an Shaanxi China
Brand Name:	XZH TEST
Certification:	ISO CE
Model Number:	XHLD305

Detail Information

Place of Origin:

Xi'an Shaanxi China

Brand Name:

XZH TEST

Certification:

ISO CE

Model Number:

XHLD305

Highlight:

High Light

Highlight:

Sulfur hexafluoride dew point meter

Dew point measurement SF6 dew point meter

Circuit breaker analysis dew point meter

Trading Information

Minimum Order Quantity:

1set

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

3000unit/year

Product Description

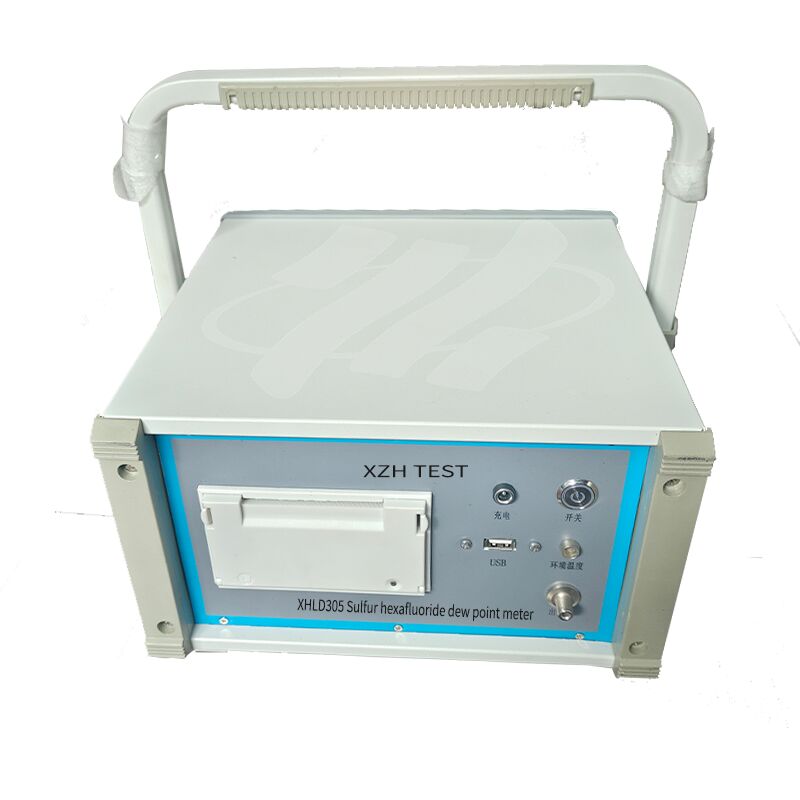

This instrument is designed to measure the dew point parameters of SF₆ gas in high-voltage circuit breakers and GIS combined electrical appliances. A color LCD screen directly displays key data including dew point, micro moisture (ppm), ambient temperature, ambient humidity, as well as time and date.

SF6 dew point meter for circuit breaker analysis 0

Performance Features
★ Self-calibration: The sensor probe can automatically calibrate the zero point;
★ Fast and gas-saving: Each SF6 gas dew point measurement takes approximately 5 minutes;
★ Self-locking connector: Uses original German imported self-locking connectors, ensuring no gas leakage;
★ Data storage: Can store 200 sets of test data;
★ Curve function: Large screen displays the dew point measurement process as a curve;
★ RS232 interface: Can be connected to a PC serial port for data transmission;
★ Built-in power supply: Built-in 4Ah rechargeable lithium battery, providing 10 hours of continuous operation.

Technical Parameters
☆ Measurement range: -80 ℃～+20 ℃
☆ Measurement accuracy: ±1.0℃ (-60℃～20℃) / ±2℃ (-80℃～-60℃)
☆ Response time: 63% in 10 seconds, 90% in 240 seconds / 63% in 5 seconds, 90% in 45 seconds
☆ Ambient temperature: -40℃～+60℃ Ambient humidity: 0～100％ RH
