SF6 Leak Detector with Quantitative and Accurate Measurement
SF6 Leak Detector with Quantitative and Accurate Measurement
  • SF6 Leak Detector with Quantitative and Accurate Measurement

SF6 Leak Detector with Quantitative and Accurate Measurement

Product Details:
Place of Origin: Xi'an Shaanxi China
Brand Name: XZH TEST
Certification: ISO CE
Model Number: XHJL306
Detail Information
Place of Origin:
Xi'an Shaanxi China
Brand Name:
XZH TEST
Certification:
ISO CE
Model Number:
XHJL306
Measurement Range:
0.01ppm～500ppm
Response Time:
Less Than 3 Seconds
Highlight:

High Light

Highlight:

Quantitative SF6 leak detector

,

Highly sensitive circuit breaker analyzer

,

Accurate measurement sulfur hexafluoride leak detector

Trading Information
Minimum Order Quantity:
1set
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
3000unit/year
Product Description

The principle is that when the concentration of sulfur hexafluoride gas in the air changes, the ionization degree of the mixed gas will vary under the action of a high-frequency electromagnetic field, and the sulfur hexafluoride concentration can be reflected by detecting the ionization degree.

SF6 Leak Detector with Quantitative and Accurate Measurement 0

Performance Features

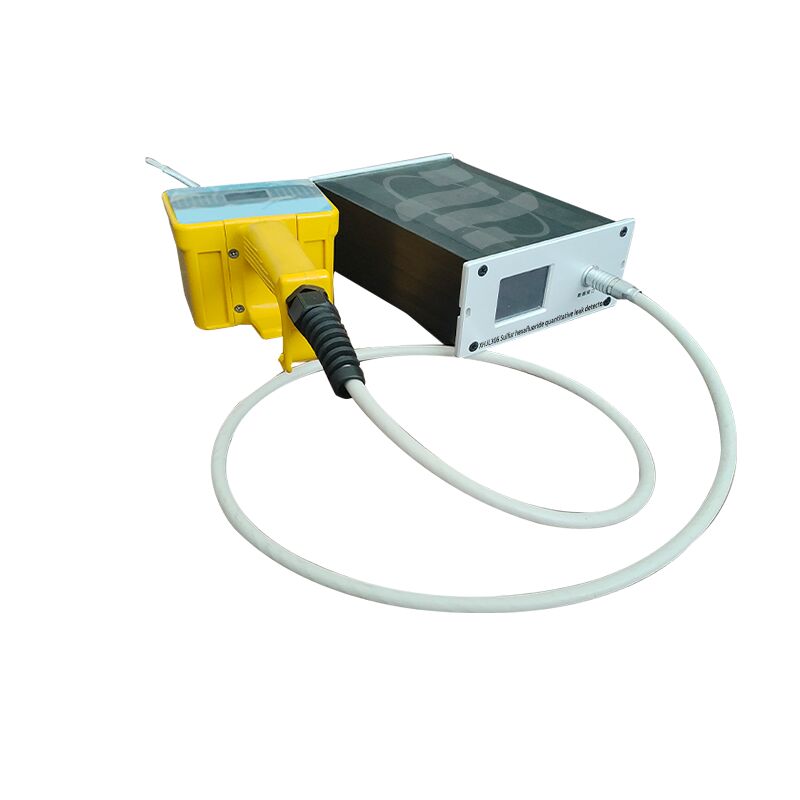

★ The instrument uses a small vacuum pump, and the probe and main unit are separate. The probe features characteristics such as being non-toxic and not producing toxic gases, and has an LCD display for gas concentration.
★ When the measured gas concentration is greater than or equal to the set value, it will automatically emit an alarm sound.

Technical Parameters
☆ Measurement Range: 0.01ppm～500ppm  Response Time: Less than 3 seconds
☆ Indication Method: LCD digital display and audible and visual alarm signals
☆ Alarm Range: 0.01ppm～500ppm
☆ Vacuum Pump: Pumping speed 0.5 liters/second  Pipe length: 4 meters
☆ Operating Time: Continuous operation for no more than 4 hours
☆ Operating Conditions: AC 220V 50Hz  7℃-40℃  ≤85%
