Circuit Breaker Analyzer
>

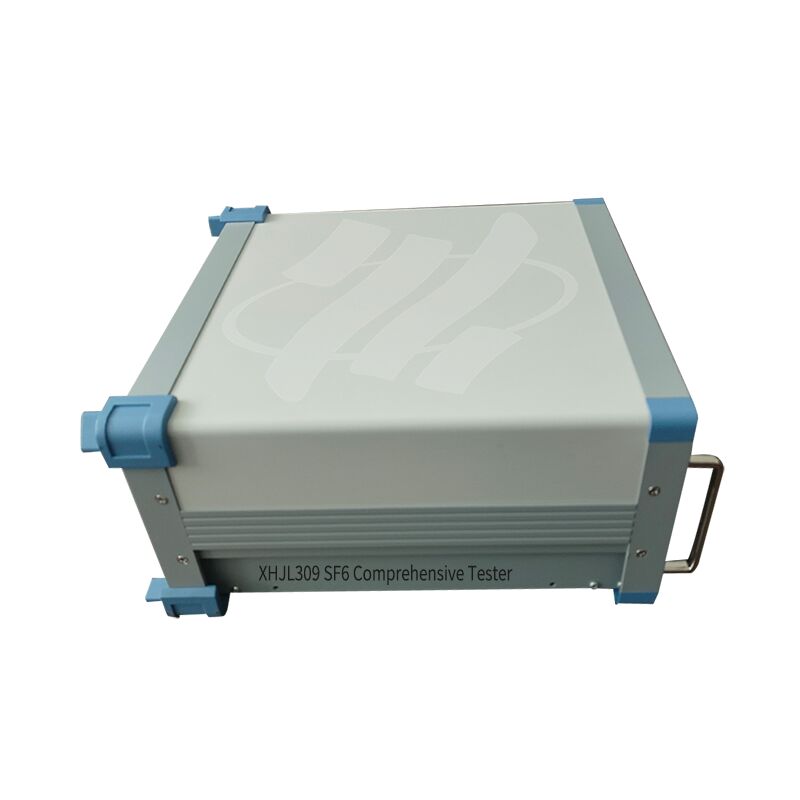

Fast SF6 Tester for Circuit Breaker Analysis
Fast SF6 Tester for Circuit Breaker Analysis
  • Fast SF6 Tester for Circuit Breaker Analysis

Fast SF6 Tester for Circuit Breaker Analysis

Product Details:
Place of Origin: Xi'an Shaanxi China
Brand Name: XZH TEST
Certification: ISO CE
Model Number: XHJL309
Detail Information
Place of Origin:
Xi'an Shaanxi China
Brand Name:
XZH TEST
Certification:
ISO CE
Model Number:
XHJL309
Fast And Gas-Saving:
Dew Point Measurement In 5 Minutes, Purity/decomposition Product Measurement In 2 Minutes;
Data Storage:
Can Store 200 Sets Of Test Data
Highlight:

High Light

Highlight:

Fast SF6 Comprehensive Tester

,

Fuel-efficient Circuit Breaker Analyzer

,

Comprehensive Testing SF6 Gas Analyzer

Trading Information
Minimum Order Quantity:
1set
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
3000unit/year
Product Description

Boasting the combined capabilities of a micro-moisture meter, a purity analyzer and a decomposition product detector, this all-in-one solution eliminates the need for three individual instruments. A single on-site measurement can finish three indicator tests, which not only saves two-thirds of the gas consumption per test but also ramps up work efficiency remarkably.

Fast SF6 Tester for Circuit Breaker Analysis 0

Performance Features
★ Fast and Gas-Saving: Dew point measurement in 5 minutes, purity/decomposition product measurement in 2 minutes;
★ Self-locking Connectors: Uses original German imported self-locking connectors, ensuring no gas leakage;
★ Data Storage: Can store 200 sets of test data;
★ Curve Function: Large screen displays the dew point measurement process as a curve;
★ Built-in Power Supply: Built-in 4Ah rechargeable lithium battery, continuous operation for 10 hours;

Fast SF6 Tester for Circuit Breaker Analysis 1

Technical Parameters
☆ Purity: 0%～100%  ±0.5%
☆ Dew Point: -80℃～+20℃  ±0.5℃ (-80℃～-60℃)
63% in 10 seconds, 90% in 240 seconds / 63% in 5 seconds, 90% in 45 seconds
☆ H2S: 0～200ppm    Accuracy: ±0.5%  0.1ppm
☆ SO2: 0～200ppm    Accuracy: ±0.5%  0.1ppm
☆ CO: 0～1000ppm   Accuracy: ±0.5%  1ppm
☆ Ambient Temperature: -40℃～+60℃   Ambient Humidity: 0～100％ RH

Tags:

arrester monitoring calibrator China made,

circuit breaker analyzer calibrator,

arrester monitoring device calibrator
