Circuit Breaker Analyzer
>
Portable Surge Arrester Monitor Calibrator
Portable Surge Arrester Monitor Calibrator
  • Portable Surge Arrester Monitor Calibrator

Portable Surge Arrester Monitor Calibrator

Product Details:
Place of Origin: Xi'an Shaanxi China
Brand Name: XZH TEST
Certification: ISO CE
Model Number: XHJS401A
Detail Information
Place of Origin:
Xi'an Shaanxi China
Brand Name:
XZH TEST
Certification:
ISO CE
Model Number:
XHJS401A
Inrush Voltage:
DC 1500V/1800V
Action Count::
1～2s/time
Highlight:

High Light

Highlight:

Portable Surge Arrester Monitor Calibrator

,

Surge Arrester Circuit Breaker Analyzer

,

Monitor Calibrator Circuit Breaker Analyzer

Trading Information
Minimum Order Quantity:
1set
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
3000unit/year
Product Description

Product Overview

To address the demands of DC arrester monitors in power systems, such as Model JCQ(WZ)-16, this device has been researched and developed, which is mainly dedicated to the calibration work of 1000kV-class arrester monitors.

Performance Features

★ High stability is achieved in measured data;
★ When the heterodyne output is in the online mode, it has strong resistance to interference;
★ Standard sine wave is provided as the output signal;
★ Measurement can be performed with its built-in battery, making it convenient to use on site;

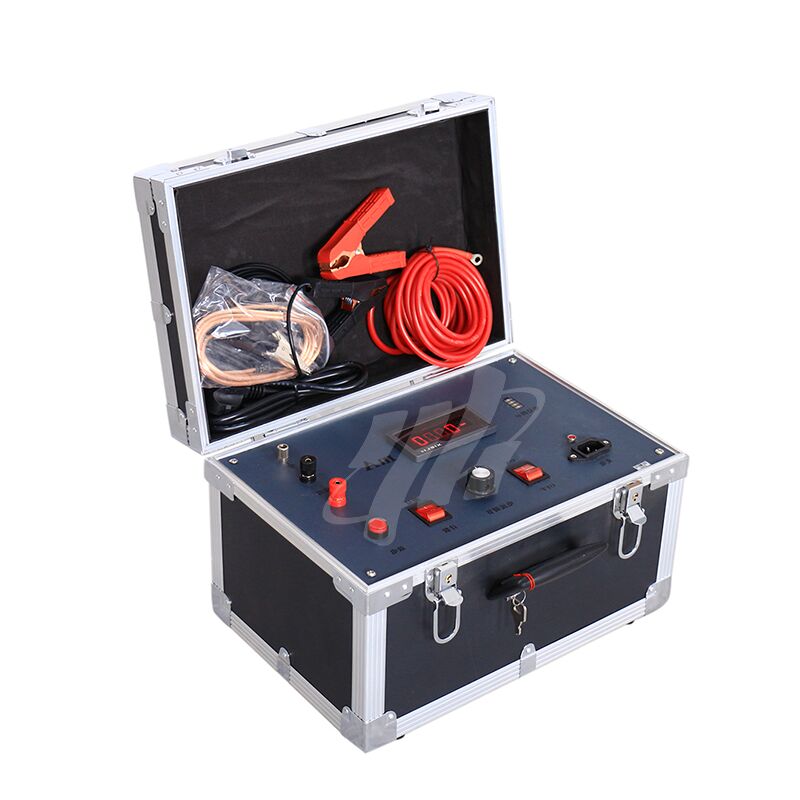

Portable Surge Arrester Monitor Calibrator 0

Technical Specifications

☆ Power Supply: Built-in 10.4Ah 12V battery

☆ Output Frequency: 55Hz

☆ Output Current: 0-5mA/10mA/30mA (Customizable)

☆ Resolution: 0.001mA

☆ Current Accuracy: 0.5% ± 3 digits

☆ Inrush Current: 50A～100A (Instantaneous)

☆ Inrush Voltage: DC 1500V/1800V

☆ Action Count: 1～2s/time

☆ Number of Actions: Cyclic measurement
