Smart Portable Zinc Oxide Surge Arrester Tester
Smart Portable Zinc Oxide Surge Arrester Tester
  • Smart Portable Zinc Oxide Surge Arrester Tester

Smart Portable Zinc Oxide Surge Arrester Tester

Product Details:
Place of Origin: Xi'an Shaanxi China
Brand Name: XZH TEST
Certification: ISO CE
Detail Information
Place of Origin:
Xi'an Shaanxi China
Brand Name:
XZH TEST
Certification:
ISO CE
Highlight:

High Light

Highlight:

Smart Zinc Oxide Surge Arrester Tester

,

Portable Circuit Breaker Analyzer

,

Digital Display Surge Arrester Characteristic Tester

Trading Information
Minimum Order Quantity:
1set
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
3000unit/year
Product Description

Product Overview

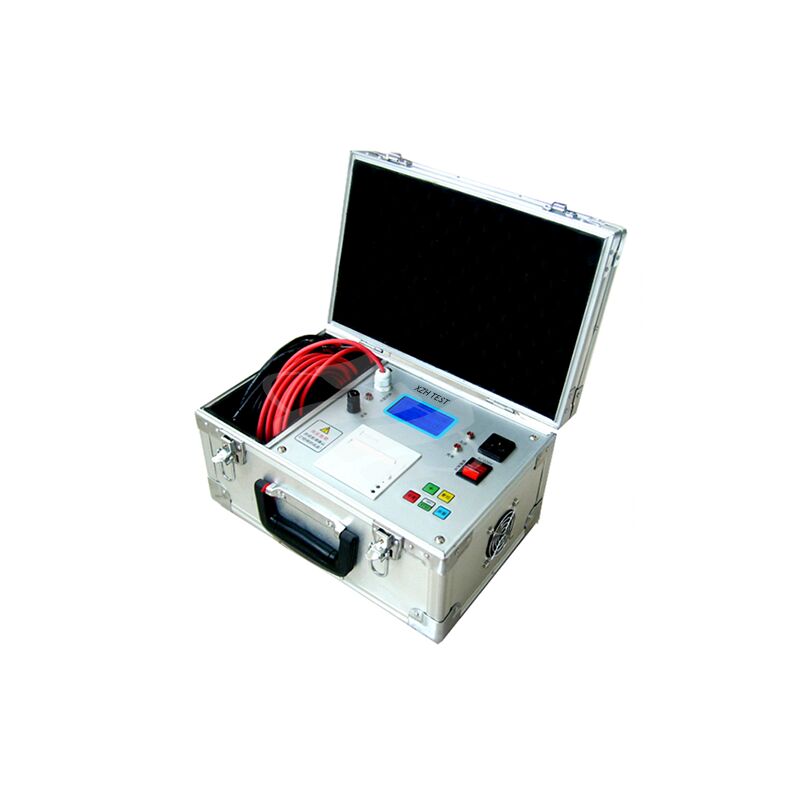

The XHDD402 Zinc Oxide Arrester Characteristic Tester is used to detect internal defects such as poor contact between valve blocks of gapless zinc oxide arresters (MOA) in power systems of 10kV and below. In accordance with the Preventive Test Code for Power Equipment DL/T596, the DC 1mA voltage (U1mA) and leakage current at 0.75 U1mA of metal oxide arresters shall be tested before each thunderstorm season and when necessary.

Performance Features


★ Automatically senses ambient temperature and records it in test results;

★ Supports remote control testing for convenient and efficient operation;

★ Adopts full digital processing with a built-in mathematical model, providing high and stable measurement accuracy;

★ Can store 50 groups of test data without loss after power failure, supporting real-time viewing and printing.

Technical Specifications

☆ Measurement Range: 0～30kV/1000μA Ripple Coefficient: ≤1.5%

☆ Resolution: Current: 0.5μA Voltage: 0.1 kV

☆ Charging Time: 2-3 hours Battery Life: ≥4 hours

☆ Remote Control Distance: 100m

☆ Ambient Temperature: -10℃～50℃ Relative Humidity: ≤85% at 25℃

Smart Portable Zinc Oxide Surge Arrester Tester 0
