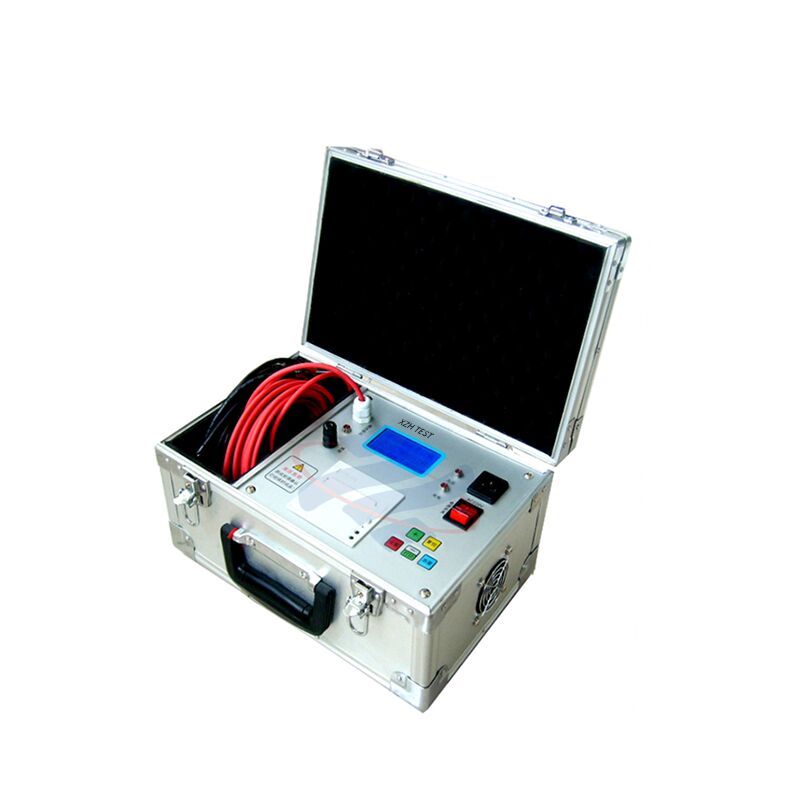

High Precision Zinc Oxide Surge Arrester Tester

Name: High Precision Zinc Oxide Surge Arrester Tester
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHDD402
Price: 7,970.00 USD
Availability: InStock

Product Details:

Place of Origin:	Xi'an Shaanxi China
Brand Name:	XZH TEST
Certification:	ISO CE
Model Number:	XHDD402

Detail Information

Place of Origin:

Xi'an Shaanxi China

Brand Name:

XZH TEST

Certification:

ISO CE

Model Number:

XHDD402

Current:

0.5μA

Voltage:

0.1 KV

Remote Control Distance:

100m

Highlight:

High Light

Highlight:

High Precision Zinc Oxide Surge Arrester Tester

Zinc Oxide Circuit Breaker Analyzer

Characteristic Testing Surge Arrester Tester

Trading Information

Minimum Order Quantity:

1set

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

3000unit/year

Product Description

Product Introduction

The XHDD402 Zinc Oxide Arrester Performance Tester specializes in identifying internal defects like loose connections in gapless metal oxide arresters (MOA) for 10kV and below power systems. Complying with Power Equipment Preventive Test Specification DL/T596, annual testing of DC 1mA voltage (U1mA) and 0.75 U1mA leakage current is required before thunderstorm seasons and during critical maintenance periods.

Key Advantages

★ Automatically captures ambient temperature and integrates it into test results;

★ Enables wireless remote operation to make testing simpler and faster;

★ Full digital signal processing with built-in mathematical model ensures high-precision and reliable measurement;

★ Stores 50 sets of test data permanently (power-off proof), with easy access to data review and printing functions.

High Precision Zinc Oxide Surge Arrester Tester 0

Technical Specifications

☆ Measurement Range: 0～30kV/1000μA Ripple Coefficient: ≤1.5%

☆ Resolution: Current: 0.5μA Voltage: 0.1 kV

☆ Charging Time: 2-3 hours Battery Life: ≥4 hours

☆ Remote Control Distance: 100m

☆ Ambient Temperature: -10℃～50℃ Relative Humidity: ≤85% at 25℃
