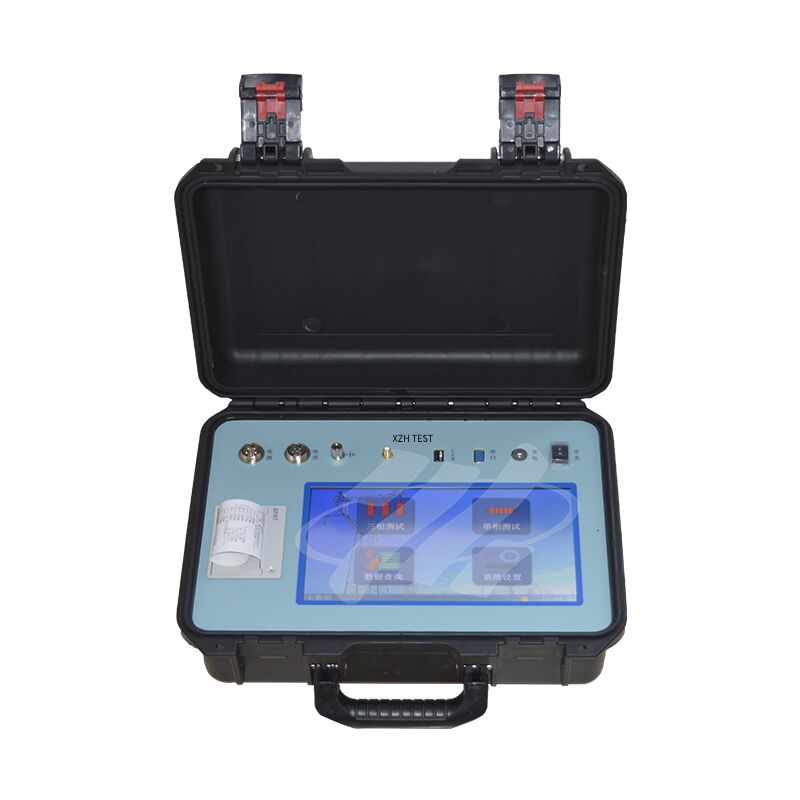

Zinc oxide surge arrester live-line tester

Name: Zinc oxide surge arrester live-line tester
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHDD405
Price: 7,970.00 USD
Availability: InStock

Product Details:

Place of Origin:	Xi'an Shaanxi China
Brand Name:	XZH TEST
Certification:	ISO CE
Model Number:	XHDD405

Detail Information

Place of Origin:

Xi'an Shaanxi China

Brand Name:

XZH TEST

Certification:

ISO CE

Model Number:

XHDD405

Wireless Frequency:

433MHz

Transmission Distance:

100 Meters

Highlight:

High Light

Highlight:

Zinc oxide surge arrester tester

Live-line circuit breaker analyzer

Surge arrester live-line tester

Trading Information

Minimum Order Quantity:

1set

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

3000unit/year

Product Description

Product Overview

The XHDD405 Wireless Series Zinc Oxide Arrester Live Tester is suitable for live or power-off testing of zinc oxide arresters at all voltage levels. It can timely detect hidden dangers such as internal insulation dampness and valve plate aging.

It can measure total current, resistive current and its harmonics, power frequency reference voltage and its harmonics, active power and phase difference. The large screen displays real voltage and current waveforms, and accurately analyzes the content of fundamental wave and 3rd to 7th harmonics.

Performance Features

★ Adopts high-precision sampling technology and Fourier harmonic analysis;

★ High-speed magnetic isolation digital sensor directly collects voltage and current input signals;

★ Replaces PT secondary wiring with electric field induction or wireless transmission;

★ Provides six kinds of test methods;

★ Supports resistive current fundamental peak output and side-phase correction;

★ Built-in battery, calendar clock and micro printer; stores up to 120 groups of test data.

Zinc oxide surge arrester live-line tester 0

Technical Specifications

☆ Full Current Measurement Range: 0～10mA RMS ±(5% + 5uA)

☆ Resistive Current Fundamental Wave Measurement Accuracy: ±(5% + 5uA)

☆ Current Harmonic Measurement: ±(10% + 10uA) Input Resistance: ≤2Ω

☆ Reference Voltage Input Range: 25V～250V RMS ±(5% + 0.5V)

☆ Voltage Harmonic Measurement: ±(10% of Reading) Input Resistance: ≥1800kΩ

☆ Wireless Frequency: 433MHz Transmission Distance: 100 meters

☆ Continuous Operating Time: Over 8 hours Charging Time: Over 6 hours

☆ Charging Power Supply: AC 220V 10%, 50Hz 1% Weight: 5kg
