Transformer Winding Deformation Tester with FRA Technology| XHBX1501

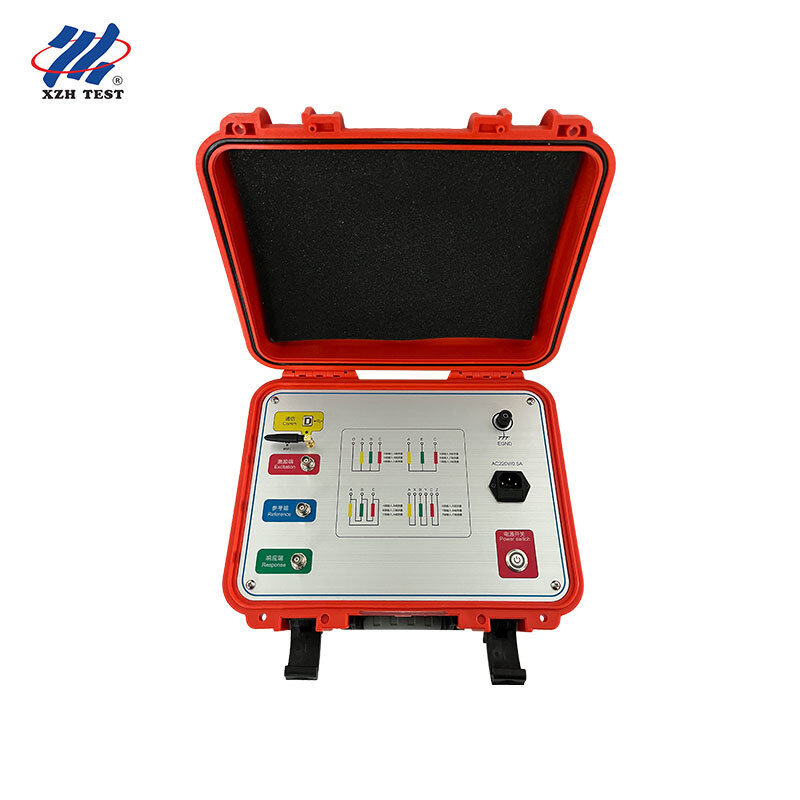

The XHBX1501 Transformer Winding Deformation Tester utilizes advanced Frequency Response Analysis (FRA) technology to accurately assess transformer internal winding conditions. By measuring characteristic parameters across different frequency domains, this instrument quantifies winding response changes to determine deformation severity, enabling precise evaluation of whether transformers require maintenance or repair. As a factory-floor instrument, it establishes the golden reference FRA fingerprint that anchors the transformer's entire lifecycle diagnostic strategy.

• Factory Baseline Establishment: Creates precise frequency response fingerprints for every newly manufactured transformer winding before shipment — the authoritative reference dataset for all future field comparisons, warranty claims, and failure investigations.
• DDS Digital Frequency Sweeping: Precision direct digital synthesis technology delivers accurate fault diagnosis across the full 100Hz–2MHz range, detecting winding twisting, bulging, displacement, tilting, inter-turn short circuits, and phase-to-phase contact faults during production testing.
• Dual-Channel 16-Bit A/D Sampling: High-speed synchronized dual-channel capture of both amplitude and phase response data ensures laboratory-grade measurement fidelity on the factory floor.
• Dual Comparison Capability: Horizontal comparison (A-B-C phase symmetry validation) ensures all three phases meet manufacturing tolerances. Longitudinal comparison enables future field technicians to overlay service measurements against the factory baseline for early degradation detection.
• Dual Sweep Modes: Linear and segmented frequency sweep with linear or logarithmic indexing — flexible configurations to match specific transformer designs and customer specification requirements.
• Automatic Report Generation: Compiles test data, comparison curves, and pass/fail diagnostic conclusions into formatted Word documents — directly attachable to factory test reports, customer delivery documentation, and QA traceability records.
• DL/T911-2004 Compliance: Full adherence to the power industry standard, ensuring factory test results are accepted by utility customers, third-party inspectors, and regulatory authorities.
