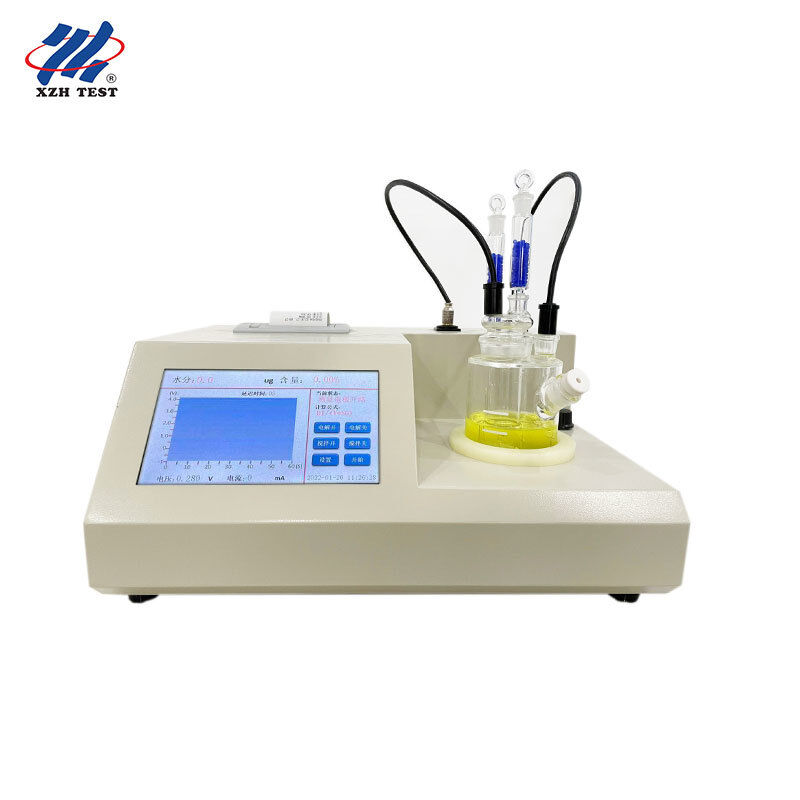

Trace Moisture Analyzer| XHWS180
The XHWS180 trace moisture analyzer is based on the GB/T 7600 standard and adopts the Karl Fischer coulometric titration method to measure trace moisture of different substances with the most reliable analytical principle. Driven by a 32-bit embedded microprocessor with a mini operating system, the instrument features fast analysis speed, simple operation, high accuracy and strong automation, making it an ideal solution for trace water content determination in petroleum, chemical, electric power, railway, pesticide, pharmaceutical and environmental protection industries.
Applications & Target Audience: Designed for petroleum refining and chemical enterprises (raw material and finished product moisture QC), electric power utilities (transformer insulating oil trace moisture testing per GB/T 7600), pharmaceutical and pesticide manufacturers (solvent and reagent water content control), environmental monitoring laboratories, railway locomotive oil testing departments, and third-party inspection institutes that require reliable Karl Fischer coulometric moisture measurement.
Key Specifications
| Titration Method |
Karl Fischer coulometric titration (coulometric analysis) |
| Electrolysis Current Control |
0~400mA automatic control; electrolysis speed up to 2200μg/s |
| Measuring Range |
1μg~200mg |
| Sensitivity |
0.1μg H2O |
| Accuracy |
10μg~1000μg ±3μg, ≤0.3% (1mg) |
| Display |
Color LCD touch screen with full digital keyboard |
| Calculation Formulas |
4 built-in formulas with automatic unit conversion |
| Printer |
Micro thermal printer with time record |
| Power Supply |
220V±10%, 50Hz |
| Power Consumption |
<40W |
| Ambient Temperature |
5~40°C |
| Operating Humidity |
≤85% |
| Dimensions |
380×310×180mm |
| Weight |
Approx. 6kg |
Advanced Features
32-bit embedded microprocessor as the main control core with a mini operating system
0~400mA automatic electrolysis current control for high accuracy, fast measurement and stable results
High-quality SMD components with high integration, simple operation and ultra-long service life
4 built-in calculation formulas with automatic conversion between required units
Extra large color touch screen and full digital keyboard for simple operation and convenient data calculation
Graph curve analysis to help analyze water content trends
Chinese/English switchable interface at any time
Ergonomic design with innovative and optimized operating software
FAQ
Q1: What principle does the XHWS180 trace moisture analyzer use?
It adopts the Karl Fischer coulometric titration method based on the GB/T 7600 standard, which is the most reliable method for trace moisture determination. The iodine generated by electrolysis is proportional to the charge according to Faraday's law, and the water content is calculated automatically.
Q2: What is the measuring range and sensitivity?
The measuring range is 1μg~200mg with a sensitivity of 0.1μg H2O. The accuracy is ±3μg for 10μg~1000μg and ≤0.3% at 1mg, ensuring reliable results even for ultra-trace moisture samples.
Q3: Which industries is this moisture tester suitable for?
It is widely used in petroleum, chemical, electric power, railway, pesticide, pharmaceutical and environmental protection departments, such as transformer insulating oil moisture testing, solvent water content analysis and raw material QC.
Q4: How fast is the measurement?
With 0~400mA automatic electrolysis current control, the electrolysis speed can reach up to 2200μg/s, providing fast analysis speed while maintaining high precision and stable, reliable results.
Q5: How are results displayed and recorded?
The instrument features an extra large color touch screen with graph curve analysis for water content trends, 4 built-in calculation formulas with automatic unit conversion, and a micro thermal printer with time records for convenient result searching.
