Transformer Tester with Vector Analysis and Diagnostics

Name: Transformer Tester with Vector Analysis and Diagnostics
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHTX1318
Price: 4,115.00 USD
Availability: InStock

Product Details:

Place of Origin:	Xi'an Shaanxi China
Brand Name:	XZH TEST
Certification:	ISO CE
Model Number:	XHTX1318

Detail Information

Place of Origin:

Xi'an Shaanxi China

Brand Name:

XZH TEST

Certification:

ISO CE

Model Number:

XHTX1318

Highlight:

High Light

Highlight:

Simple vector analysis Transformer Tester

Capacity characteristics measurement Vector Analysis Tester

Transformer diagnostics Transformer Capacity Characteristics Tester

Trading Information

Minimum Order Quantity:

1set

Price:

Negotiable

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

3000unit/year

Product Description

XHTX1318 Series Transformer Characteristic Tester is a high-precision, dual-function diagnostic instrument that effectively serves as two instruments in one: a transformer capacity tester and a transformer characteristic parameter tester. Engineered for comprehensive transformer evaluation, it accurately measures multiple power frequency parameters across diverse transformer models — including capacity, type identification, no-load current, no-load loss, short-circuit (load) loss, impedance voltage, and vector group analysis. With ±0.2% measurement accuracy across voltage, current, and power parameters, it is the go-to instrument for power utilities, transformer manufacturers, and testing service providers who require reliable, repeatable transformer diagnostics in the field or laboratory.

Technical Specifications

Parameter	Specification
Measurement Inputs
Active Voltage Range	0–10 V
Active Current Range	0–10 A
Passive Voltage Range	0–750 V (wide range)
Passive Current Range	0–20 A – 100 A (internal dual range, auto/manual selection)
Measurement Accuracy
Voltage	±0.2%
Current	±0.2%
Power (Cosφ > 0.2)	±0.2%
Power (0.02 < Cosφ < 0.2)	±0.3%
Operating & Power
Operating Temperature	-25℃ to +65℃
Charging Power Supply	AC 160V–260V
Insulation
Input-to-Casing Resistance	≥ 100 MΩ
Power Input Withstand	2 kV (RMS) for 1 minute

Measured Parameters

Parameter	Description
Transformer Capacity	Accurate capacity determination and type identification for unknown or unlabeled transformers
No-Load Current	Excitation current measurement under rated voltage
No-Load Loss	Core loss measurement for efficiency evaluation
Short-Circuit / Load Loss	Copper loss measurement under rated current
Impedance Voltage	Percentage impedance determination for system coordination
Vector Group	Winding connection and phase displacement analysis

Key Performance Features

Dual-Function Integration — Combines transformer capacity testing and characteristic parameter measurement in a single instrument, eliminating the need to carry and manage two separate testers in the field.
High-Precision ±0.2% Accuracy — Class-leading measurement accuracy across voltage, current, and power parameters (Cosφ > 0.2), with ±0.3% even at very low power factors (0.02–0.2), ensuring reliable data for transformer acceptance, diagnostics, and energy efficiency verification.
Wide-Range Passive Measurement — Passive voltage inputs up to 750V and dual-range current inputs (0–20A / 0–100A) with automatic or manual range selection accommodate the full spectrum of distribution and power transformers without external PT/CT accessories.
Extreme Environment Tolerance — Operating temperature range of -25℃ to +65℃ enables deployment in harsh outdoor substation environments from arctic cold to desert heat, with charging power supply compatibility from 160V to 260V for reliable operation on generator or unstable grid supplies.
Robust Insulation Design — ≥100 MΩ input-to-casing insulation resistance and 2kV power input withstand capability ensure operator safety and measurement integrity in high-voltage substation environments.
Comprehensive Transformer Diagnostics — Measures all key power frequency parameters in a single test sequence: capacity, type, no-load current, no-load loss, load loss, impedance voltage, and vector group — providing a complete transformer health profile for condition assessment, acceptance testing, and energy auditing.

Application Areas

Sector	Typical Applications
Power Systems	Generation, transmission, transformation, and distribution transformer testing
Industrial Plants & Mining	Large-scale manufacturing, mining operations, and heavy industry transformer diagnostics
Metallurgy & Petrochemical	Smelting, chemical processing, water treatment facility transformer evaluation
Transportation Infrastructure	Ports, railways, highways, airports, and municipal street lighting power systems
Commercial & Institutional	Large enterprises, logistics centers, and institutional facility management
Construction & Property	Large construction projects and property management transformer commissioning
Testing & Commissioning	Power installation and commissioning service providers

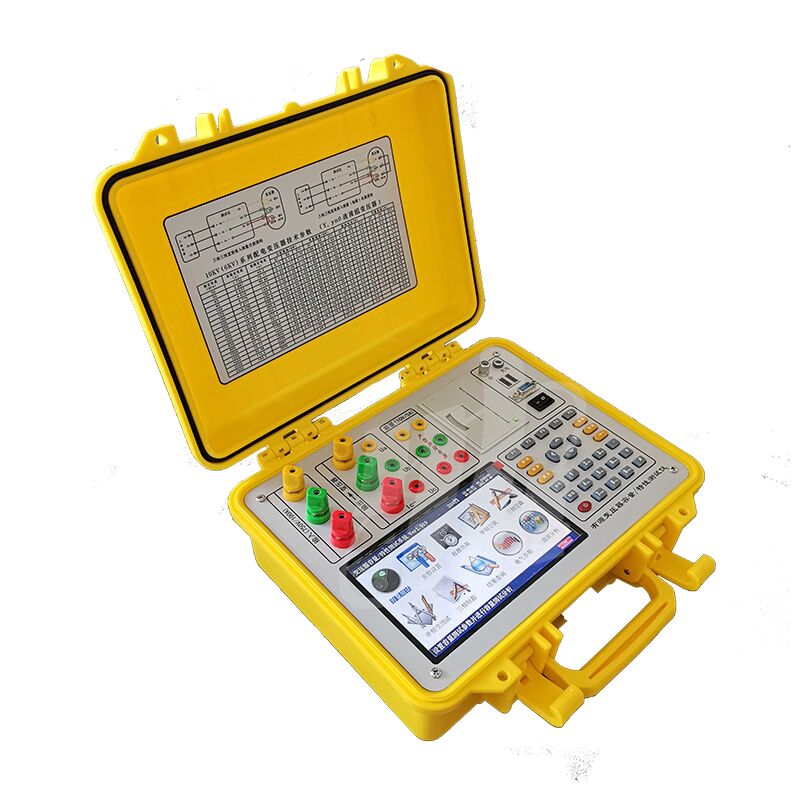

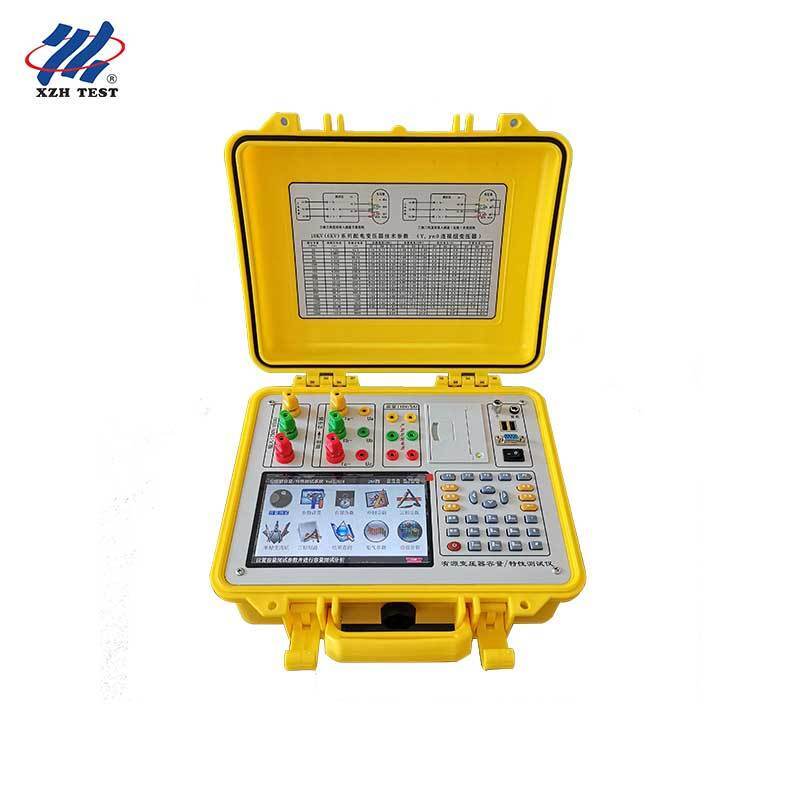

Product Image

XHTX1318

Important Safety Note

If any abnormal situation or malfunction is observed with the instrument, do not attempt to open or disassemble it. Contact our company promptly for appropriate service arrangements.

Frequently Asked Questions

Q1: Is this tester suitable for transformer manufacturing factory acceptance testing (FAT)?

Yes, the XHTX1318 is purpose-built for transformer manufacturing quality control. Its ±0.2% accuracy class meets the stringent measurement requirements of factory acceptance testing for both distribution and power transformers. The dual-function design enables manufacturers to verify both rated capacity compliance and key performance parameters — no-load loss, load loss, impedance voltage, and vector group — in a single instrument setup. This eliminates the need for multiple specialized testers on the production line, reducing capital investment, calibration maintenance, and operator training requirements in the QC department.

Q2: Can power utility asset management teams use this for transformer condition assessment?

Absolutely. Utility asset managers making replacement, refurbishment, or load-upgrading decisions need reliable, accurate transformer performance data. The XHTX1318 provides comprehensive condition assessment: no-load loss trends indicate core degradation, load loss increases signal winding deterioration, and impedance voltage shifts can reveal mechanical deformation. Its wide operating temperature range (-25℃ to +65℃) enables year-round field testing across all climate zones, and the dual-range current inputs (up to 100A) accommodate everything from small distribution transformers to large power transformers without external accessories.

Q3: How does it serve transformer refurbishment and retrofitting companies?

Transformer refurbishment companies that rewind, repair, and upgrade existing transformers need to verify that the rebuilt unit meets original or upgraded specifications before returning it to service. The XHTX1318’s vector group analysis capability is particularly valuable here — verifying correct winding connections after rewinding — while the capacity and loss measurements provide documented proof that the refurbished transformer meets its nameplate ratings. The instrument’s ability to measure unknown or unlabeled transformer capacity is also essential when assessing incoming cores for potential upgrade paths.

Q4: Is it appropriate for energy audit and efficiency consulting firms?

Energy efficiency consultants conducting ISO 50001 audits and industrial energy assessments need precise transformer loss data to calculate energy savings opportunities and ROI for replacement or load optimization recommendations. The XHTX1318’s ±0.2% accuracy on power measurements (even at the low power factors typical of no-load transformer testing) provides the measurement rigor required for defensible energy audit reports. The ability to test across both active (0–10V/0–10A) and passive (0–750V/0–100A) ranges means consultants can assess transformers while they remain in-situ, minimizing production disruption at client facilities.

Q5: Can electrical engineering design institutes use this for tender evaluation and commissioning?

Design institutes and engineering consultancies responsible for specifying transformers in tender documents and verifying supplied equipment during commissioning need measurement tools that can independently validate manufacturer claims. The XHTX1318’s comprehensive parameter coverage — capacity, type, no-load and load losses, impedance voltage, and vector group — enables design engineers to cross-check every key specification item against the approved datasheet. Its ±0.2% accuracy provides the measurement confidence needed for formal commissioning reports and dispute resolution when supplied equipment performance is questioned.
