Dielectric Oil Tester with 2.5mm Gap for High Accuracy|XHYY102M

Name: Dielectric Oil Tester with 2.5mm Gap for High Accuracy|XHYY102M
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHYY102
Price: 4,115.00 USD
Availability: InStock

Product Details:

Place of Origin:	Xi'an Shaanxi China
Brand Name:	XZH TEST
Certification:	ISO CE
Model Number:	XHYY102

Detail Information

Place of Origin:

Xi'an Shaanxi China

Brand Name:

XZH TEST

Certification:

ISO CE

Model Number:

XHYY102

Highlight:

High Light

Highlight:

2.5mm Electrode Gap Dielectric Oil Test Equipment

High Accuracy Transformer Oil Tester

Dielectric Strength Testing BDV Tester

Trading Information

Minimum Order Quantity:

1set

Price:

Negotiable

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

3000unit/year

Product Description

XHYY102M Insulating Oil Breakdown Voltage Tester is a high-accuracy, fully digital industrial instrument built around the internationally standardized 2.5 mm electrode gap for precision dielectric strength measurement. Crafted by our elite R&D and technical team to meet all relevant insulating oil testing standards and regulations, it represents the culmination of proprietary technical advantages, repeated field verification, and persistent innovation. Boasting intuitive touch-screen operation and sleek aesthetics, this tester integrates automatic digital microcomputer control to deliver superior measurement precision, robust anti-interference performance, and dependable safety across all testing applications.

Technical Specifications

Parameter	Specification
Output Voltage	0–80 kV (optional higher ranges)
Booster Capacity	1.5 kVA
Voltage Accuracy	±(2% of reading + 2 digits)
Boost Speed	0.5–5.0 kV/s (10 gears, 0.5 kV/s increments; error 0.2 kV/s)
Power Distortion Rate	< 1%
Electrode Gap	Standard 2.5 mm (per IEC 60156)
Number of Trials	1–9 times (user-selectable)
Static Release Time	0–9999 s (user-configurable, default 900 s)
Interval Rest Time	0–999 s (user-configurable, default 300 s)
Mixing/Stirring Time	0–999 s (user-configurable, default 15 s)
Test Standards	GB/T507 / DL429.9 / IEC156 / Custom-defined
Display	Touch-screen LCD (Chinese/English switchable)
Data Interface	RS-232 serial port
Dimensions	410 × 380 × 370 mm

Operating Conditions

Parameter	Specification
Ambient Temperature	0℃ to +40℃
Relative Humidity	≤ 85% RH
Working Power Supply	AC 220V ± 10%
Power Frequency	50 Hz ± 10%
Power Consumption	< 200 W

Key Performance Features

Standard 2.5 mm Electrode Gap — Precision-machined to IEC 60156 specifications, the 2.5 mm standard electrode gap ensures internationally comparable breakdown voltage measurements, eliminating the measurement uncertainty that can arise from non-standard gap configurations.

Touch-Screen Digital Control — Intuitive touch-panel interface with Chinese/English bilingual display simplifies parameter configuration, test execution, and result review while reducing operator training time and input errors.

10-Gear Precision Boost Control — Selectable boost rates from 0.5 to 5.0 kV/s enable optimized test profiles for different oil types, viscosities, and degradation states, with ±(2% + 2 digits) accuracy and <1% power distortion.

Fully Automated Multi-Cycle Testing — Independently configurable mixing (0–999 s), static release (0–9999 s), interval rest (0–999 s), and trial count (1–9) enable unattended execution of any standard or custom test protocol.

Large-Capacity MCU with Watchdog — Stable, crash-free operation during extended testing sessions with comprehensive over-current, over-voltage, and short-circuit protection.

Multi-Standard Protocol Support — Pre-loaded with GB/T507-1986, GB/T507-2002, DL429.9, IEC156, and user-defined custom protocols for seamless compliance across diverse regulatory environments.

Corrosion-Resistant Oil Cup — Fabricated from special glass and high-polymer materials with precision processing to prevent oil leakage and chemical corrosion over extended service life.

RS-232 Data Export & Printing — Serial connectivity for PC-based archiving and LIMS integration, complemented by built-in thermal printer for immediate on-site documentation.

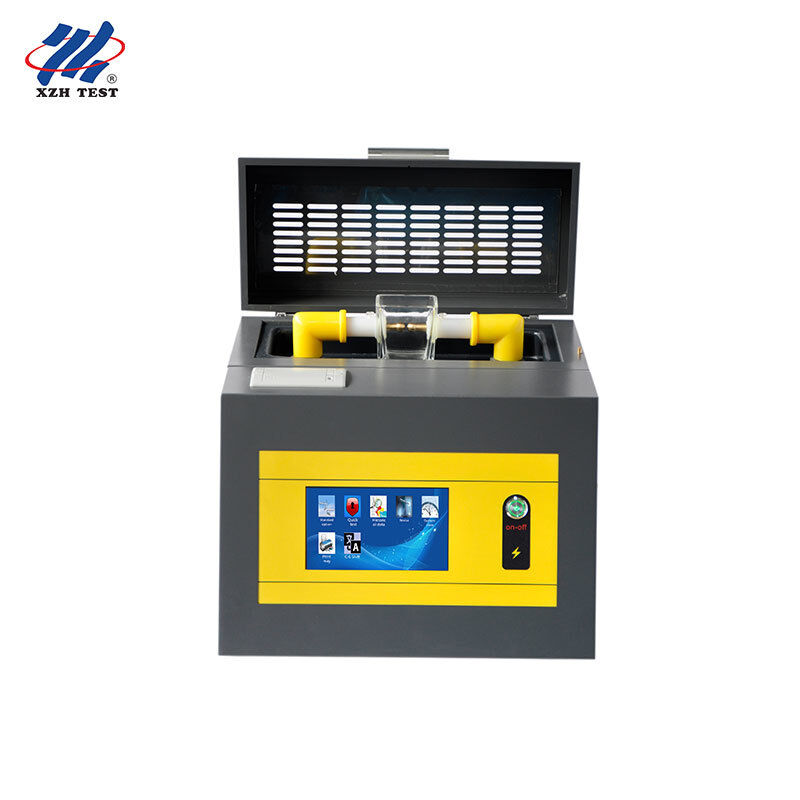

Product Images

XHYY102M

Frequently Asked Questions

Q1: Is this tester suitable for power plant commissioning and start-up teams?

Absolutely. New power plant commissioning involves verifying the dielectric strength of insulating oil in dozens of transformers, switchgear units, and auxiliary equipment before initial energization. The XHYY102M’s standardized 2.5 mm electrode gap ensures that acceptance test results are directly comparable to equipment manufacturer specifications and international benchmarks. The touch-screen interface with configurable multi-cycle test sequences allows commissioning engineers to pre-program test protocols matching each equipment vendor’s requirements, while the thermal printer generates immediate documentation for commissioning reports and handover packages.

Q2: Can electrical equipment rental and leasing companies use this for asset condition verification?

Equipment rental companies supplying temporary transformers and switchgear for construction sites, events, or emergency backup need to verify oil condition both before dispatch and upon return to manage liability and maintenance. The XHYY102M’s standardized 2.5 mm gap provides legally defensible, repeatable BDV measurements that establish clear before/after condition baselines. The touch-screen operation and saved test presets enable consistent protocol execution by depot staff without specialized high-voltage training, while printed reports provide the documentation trail required for rental contract compliance and damage claims.

Q3: How does it serve scientific research institutes studying dielectric materials?

Materials science and high-voltage engineering research groups studying novel insulating liquids — including synthetic esters, natural esters, nanofluids, and blended dielectrics — require instruments capable of precise, repeatable breakdown voltage measurement under configurable test conditions. The XHYY102M’s 10-gear boost rate control (0.5–5.0 kV/s), independent mixing/stirring capability, and user-defined custom test protocols provide researchers with full experimental control. The precision 2.5 mm electrode gap ensures that published results are reproducible and comparable to the wider scientific literature, while RS-232 data export supports direct integration with laboratory data acquisition and analysis software.

Q4: Is it appropriate for military and defense electrical facility maintenance?

Defense installations — including radar stations, communication hubs, naval bases, and air defense systems — operate mission-critical electrical infrastructure where transformer reliability directly impacts operational readiness. The XHYY102M’s fully automated, digitally controlled operation eliminates operator subjectivity, ensuring that test results from different technicians across different facilities are directly comparable. The instrument’s robust anti-interference design and comprehensive protection circuitry perform reliably even in the electromagnetically congested environments typical of defense installations. Printed reports with timestamp and ambient conditions provide the auditable maintenance records required under defense logistics frameworks.

Q5: Can airport and seaport electrical infrastructure teams deploy this tester?

Airports and seaports operate extensive medium-voltage distribution networks with dozens of transformers powering runway lighting, terminal facilities, cargo handling equipment, and navigation systems where outages have severe operational and economic consequences. The XHYY102M’s touch-screen interface and bilingual display are particularly valuable in port environments with internationally diverse maintenance crews. The compact 410×380×370 mm footprint allows deployment in space-constrained electrical rooms typical of airport and port infrastructure, while the 15-second mixing and automated test sequences enable efficient oil screening during the narrow maintenance windows available between flight or shipping schedules.
