20kHz Sampling Rate Tap-Changer Tester With Portable Design| XHYZ1668A

Name: 20kHz Sampling Rate Tap-Changer Tester With Portable Design| XHYZ1668A
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHYZ1668A
Price: 4,115.00 USD
Availability: InStock

Product Details:

Place of Origin:	Xi'an Shaanxi China
Brand Name:	XZH TEST
Certification:	ISO CE
Model Number:	XHYZ1668A

Detail Information

Place of Origin:

Xi'an Shaanxi China

Brand Name:

XZH TEST

Certification:

ISO CE

Model Number:

XHYZ1668A

Highlight:

High Light

Highlight:

20kHz Sampling Rate Tap-Changer Tester

High Precision Transformer Tester

Portable Design Tap-Changer Tester

Trading Information

Minimum Order Quantity:

1set

Price:

Negotiable

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

3000unit/year

Product Description

XHYZ1668A On-Load Tap-Changer Tester is a professional-grade diagnostic instrument engineered for comprehensive evaluation of transformer on-load tap-changers (OLTC). Equipped with advanced intelligent functions and a complete English menu system, this instrument enables on-site personnel to master its operation quickly without specialized training. Its compact structure, lightweight build, and excellent anti-interference performance effectively reduce physical burden during field testing. Widely recognized as an optimal choice for power generation and distribution enterprises and transformer manufacturing sectors, this device plays a critical role in safeguarding safe production and elevating product quality standards.

Technical Specifications

Parameter	Specification
Output Current	1.0A / 0.5A / 0.2A (Selectable)
Transition Resistance Range	0.3Ω–20Ω (1.0A) \| 5Ω–40Ω (0.5A) \| 20Ω–100Ω (0.2A)
Transition Time Range	0–320 ms
Open Circuit Voltage	24V
Resistance Accuracy	±(5% of reading ± 0.1Ω)
Time Accuracy	±(0.1% of reading ± 0.2ms)
Sampling Rate	20 kHz
Storage Capacity	500 sets of data (built-in)
Display	7-inch high-brightness LCD
Dimensions (Main Unit)	360 * 290 * 170 mm
Dimensions (Cable Box)	360 * 290 * 170 mm
Weight (Main Unit)	6.15 kg
Weight (Cable Box)	4.55 kg
Test Cable Length	Standard 13 m (customizable)

Operating Conditions

Parameter	Specification
Ambient Temperature	-10℃ to +50℃
Relative Humidity	≤ 85% RH
Working Power Supply	AC 220V ± 10%
Power Frequency	50 ± 1 Hz

Key Performance Features

High Output Current, Lightweight Design — Delivers up to 1.0A test current in a portable form factor, minimizing field workload.

Direct Readout Without Conversion — Test YN, Y, and Δ type transformers with resistance values displayed directly; no manual calculation required.

Dual Testing Modes — Supports both with-winding and without-winding measurement, adapting to various field scenarios.

Adaptive Waveform Display — Automatically adjusts resistance, time, and amplitude axes based on sampled values for optimal visualization.

Comprehensive Protection Circuit — Built-in safeguards ensure reliable operation under demanding field conditions.

7-Inch Large LCD — High-brightness display for clear waveform analysis even in outdoor environments.

Built-in Lithium Battery (Optional) — Operates without external AC power for maximum portability.

500-Set Internal Storage — Automatic data logging with quick retrieval and on-site thermal printing.

Product Image

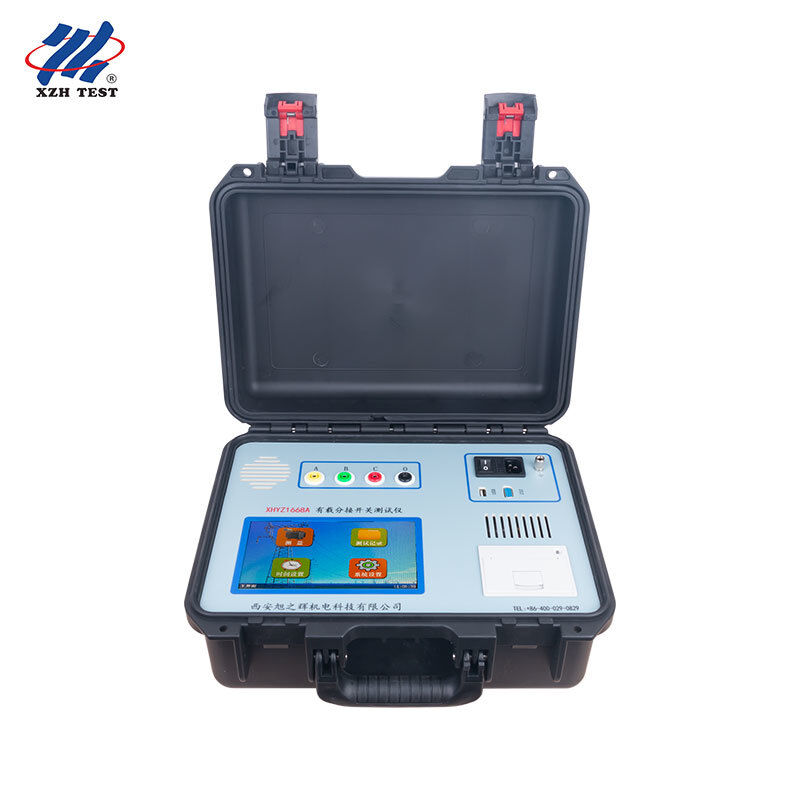

XHYZ1668A On-Load Tap-Changer Tester

Frequently Asked Questions

Q1: Is this tester suitable for railway traction transformer maintenance?

Absolutely. The XHYZ1668A is well-suited for railway electrification systems where traction transformers undergo frequent tap changes under heavy load cycles. Its 20kHz sampling rate captures fast switching transients with high fidelity, and the rugged portable design withstands the demanding trackside environment. The 500-set internal storage enables systematic condition monitoring across substations along the rail corridor.

Q2: Can this device be used for backup power transformers in data centers?

Yes. Data center UPS and power distribution transformers require regular OLTC diagnostics to ensure failover reliability. The XHYZ1668A provides precise transition time and resistance measurements with automatic waveform analysis, making it an ideal tool for data center electrical maintenance teams who need documented, repeatable test results for compliance reporting.

Q3: How does it perform in wind farm and solar plant substation testing?

Renewable energy substations present unique challenges due to variable load profiles and often remote locations. The XHYZ1668A excels here with its wide operating temperature range (-10℃ to +50℃), optional built-in lithium battery for off-grid operation, and anti-interference design that maintains accuracy despite the electromagnetic noise common in inverter-dense environments.

Q4: Is it rugged enough for mining and heavy industrial power systems?

The XHYZ1668A is designed for harsh industrial environments. With a reinforced chassis, fan-cooled enclosure, and comprehensive protection circuitry, it handles the dust, vibration, and temperature extremes typical of mining operations. The 7-inch LCD remains clearly visible even in poorly lit underground substations, and the direct resistance readout eliminates manual calculation errors during time-sensitive maintenance windows.

Q5: Can this tester be deployed on marine vessels and offshore platforms?

Marine and offshore electrical systems demand exceptional reliability given the corrosive saltwater environment and limited access for repairs. The XHYZ1668A features robust construction and a complete protection circuit that ensure stable operation at sea. Its compact 360*290*170 mm footprint fits easily in shipboard electrical rooms, and the built-in thermal printer generates immediate hard-copy reports — eliminating the need for onboard PC connectivity in confined marine workspaces.
